Product Features
- * High-flow filters for bulk gases
- * All 316L Stainless steel constructions
- * Superior particulate filtration for ultra-high purity applications
- * Excellent dry down and gas displacement properties
Specification
|
Particle Removal Size |
≥ 0.0025 ㎛ |
|
|---|---|---|
|
Max. Rated Flow |
20,000 LPM |
|
|
Materials |
Housing |
316L Stainless Steel |
|
Media |
||
|
He Leak Rating |
1 x 10-10 atm·cc/sec |
|
|
Surface Finish Interior |
≤ Ra 0.25 μinch |
|
|
Operating Temperature |
460 ℃ at 100 psi |
|

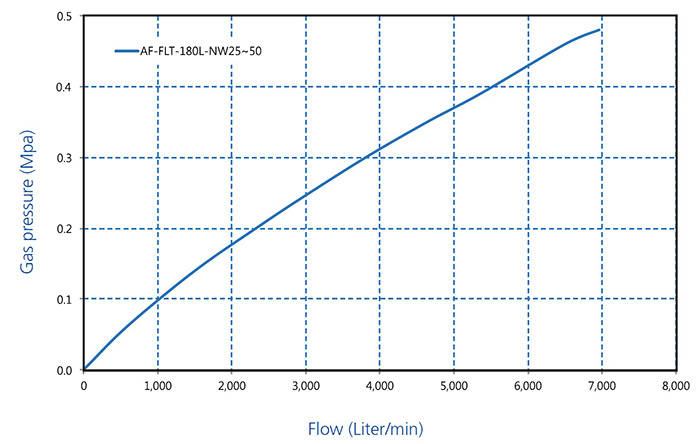

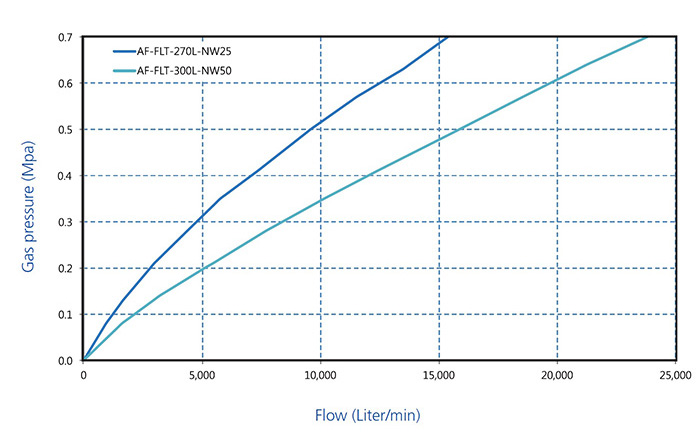

Performance Data
Ordering Information
|
Product |
Length |
Connection Size |
Connection Type |
||
|---|---|---|---|---|---|
|
FLT (Filter) |
180L |
04 |
1/4″ |
LOK |
Lok |
|
270L |
06 |
3/8″ |
NW25 |
||
|
300L |
08 |
1/2” |
NW40 |
||
|
12 |
3/4” |
NW50 |
|||

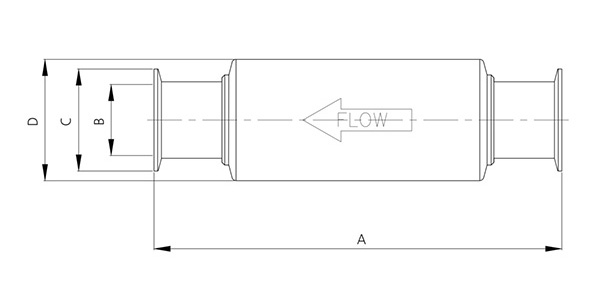

Dimension
|
Ordering No. |
Media |
A (Length) |
B |
C (Connection) |
D (O.D) |
|
|---|---|---|---|---|---|---|
|
Size |
(㎜) |
(㎜) |
Size (㎜) |
Type |
(㎜) |
|
|
FLT-180L-08LOK |
Φ 30 100 L x 1 |
180 |
10.4 |
1/2″ |
LOK |
60.5 |
|
FLT-180L-12LOK |
180 |
15.7 |
3/4″ |
LOK |
60.5 |
|
|
FLT-180L-NW25 |
180 |
26.2 |
NW25 |
60.5 |
||
|
FLT-180L-NW40 |
180 |
41.2 |
NW40 |
60.5 |
||
|
FLT-180L-NW50 |
180 |
52.2 |
NW50 |
75 |
||
|
FLT-270L-NW25 |
Φ 30 120 L x 3 |
270 |
26.2 |
NW25 |
89.1 |
|
|
FLT-300L-NW50 |
300 |
52.2 |
NW50 |
89.1 |
||
