Materials
|
Pipe / Tube |
Materials |
Grade |
|---|---|---|
|
Seamless Pipe / Tube |
SUS316L SUS316L Double Melt (VIM+VAR) Hastelloy |
EP / BA |
|
Welded Pipe / Tube |
SUS 304 SUS 316 SUS 316L Hastelloy |
EP / BA / MP / AP |
Surface Roughness
|
Designator |
Rmax (Ry) |
Internal (Ra) |
External (Ra) |
|---|---|---|---|
|
BA |
≤ 3.0 ㎛ |
≤ 10 μinch |
≤ 30 μinch |
|
EP |
≤ 0.7 ㎛ |
≤ 5 μinch |
Testing
|
He Detector Leak |
Detection sensitivity |
1 x 10-9 torr.l/sec |
|---|---|---|
|
Measruing instrument |
ALCATEL |
|
|
Pressure |
1 MPa (10 ㎏f/㎠) |
|
|
Airtightness |
0.7 MPa (7 ㎏f/㎠) |
|
|
Particle Counter |
Detection sensitivity |
0.1 ㎛ |
|
Measruing instrument |
Lightnouse |
|
Ordering Information
|
Brand |
Classifications |
Product |
Size |
|||||||
|---|---|---|---|---|---|---|---|---|---|---|
|
ASFLOW |
CX |
Coaxial Fitting |
ET |
Equal Tee |
04 |
1/4” |
20 |
1-1/4” |
48 |
3” |
|
06 |
3/8” |
24 |
1-1/2” |
64 |
4” |
|||||
|
08 |
1/2” |
32 |
2” |
80 |
5” |
|||||
|
10 |
5/8” |
40 |
2-1/2” |
96 |
6” |
|||||
|
12 |
3/4” |
* Pipe Size : __A |
||||||||
|
16 |
1” |
|||||||||

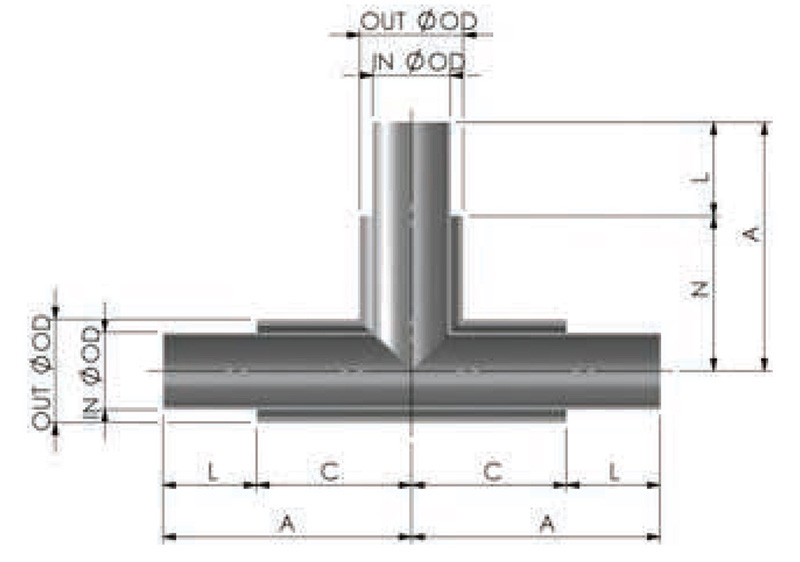

Dimension
(unit = ㎜)
|
Size |
Inner |
1/4″ |
3/8″ |
1/2″ |
3/4″ |
1″ |
1-1/2″ |
2″ |
10A |
15A |
20A |
25A |
32A |
|||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
Outer |
1/2″ |
8A |
3/4″ |
10A |
3/4″ |
15A |
1″ |
20A |
1-1/2″ |
25A |
2″ |
2-1/2″ |
20A |
25A |
32A |
40A |
50A |
|
|
OD |
Inner |
6.35 |
9.53 |
12.7 |
19.05 |
25.4 |
38.1 |
50.8 |
17.3 |
21.7 |
27.2 |
34.0 |
42.7 |
|||||
|
Outer |
12.7 |
13.8 |
19.05 |
17.3 |
19.05 |
21.7 |
25.40 |
27.2 |
38.1 |
34.0 |
50.8 |
63.5 |
27.2 |
34.0 |
42.7 |
48.6 |
60.5 |
|
|
C = N |
39 |
42 |
52 |
49 |
52 |
59 |
55 |
65 |
74 |
68 |
77 |
90 |
65 |
68 |
88 |
95 |
102 |
|
|
L |
29 |
29 |
29 |
36 |
36 |
46 |
46 |
36 |
36 |
36 |
36 |
46 |
||||||
|
A |
68 |
71 |
81 |
78 |
81 |
88 |
91 |
101 |
110 |
104 |
123 |
136 |
101 |
104 |
124 |
131 |
148 |
|
