Product Features
- * Ultra-high purity in-line gas filter
- * All 316L Stainless steel constructions
- * High temperature and dynamic pressure applications
- * Compact size and variable end connections
Specification
|
Rated Flow |
20 SLPM |
|---|---|
|
Retention |
99.99 % of Particle down to 0.3 ㎛ |
|
Materials |
316L Stainless Steel |
|
Face Seal Gasket Type |
W-seal VCR VCR + Retainer |
|
Face Seal Gasket Size |
1/4″ |
|
Element Length (Nominal) |
1″ |
|
Max. Differential Pressure |
1000 psid (20 ℃) |
|
Max. Operating Temperature |
460 ℃ (Inert gas) |

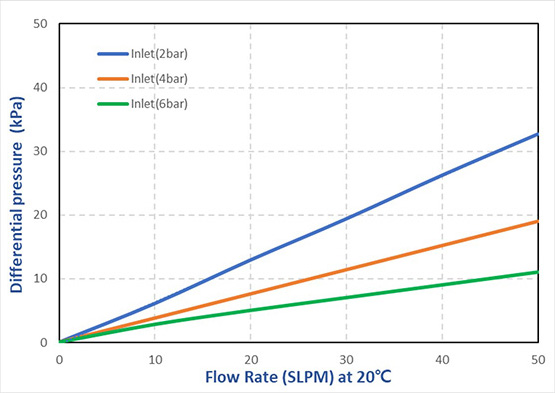

Performance Data
Ordering Information
|
Product |
Series |
Rated Flow (SLPM) |
Face Seal Gasket Size |
with Retainer |
|||
|---|---|---|---|---|---|---|---|
|
FLT (Filter) |
GF |
Gasket Filter |
20 |
04 |
1/4” |
R |
with Retainer |

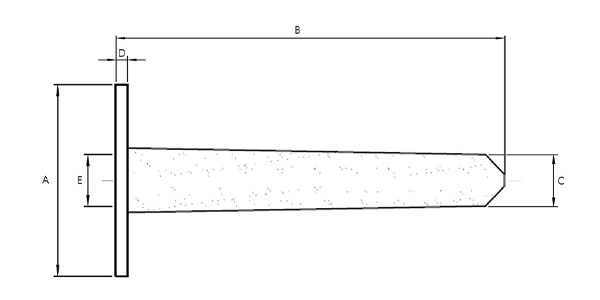

Dimension
|
Ordering No. |
Face Seal |
A (㎜) |
B (㎜) |
C (㎜) |
D (㎜) |
E (㎜) |
|
|---|---|---|---|---|---|---|---|
|
Size |
Type |
||||||
|
FLT-GF20-04 |
1/4″ |
VCR |
11.9 |
24.8 |
3.2 |
0.8 |
3.2 |
|

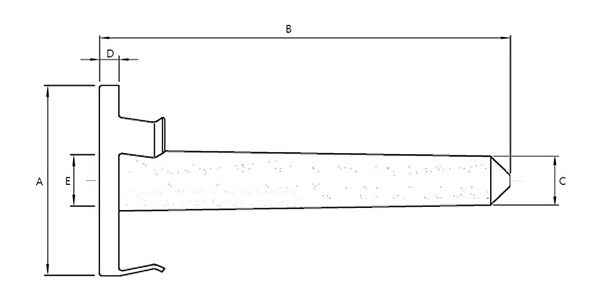

FLT-GF20-04R |
VCR+R |
12.5 |
25.1 |
3.2 |
1.2 |
3.2 |
|
