Specification
- NW10 to 50, NW63 to 250 and NW, ISO, CF Vacuum Components
- Materials : SUS304 / SUS316 / Al
- Other machining products
Ordering Information
|
① |
Type |
|---|---|
|
K |
ISO-K Clamp Flange Components |
|
② |
Item |
|---|---|
|
BW |
Bellows |
|
③ |
Size |
|---|---|
|
63D |
NW 63 |
|
80D |
NW 80 |
|
100D |
NW 100 |
|
160D |
NW 160 |
|
200D |
NW 200 |
|
250D |
NW 250 |
|
④ |
Grade |
|---|---|
|
B |
BA Grade (General) |
|
E |
EP Grade |
|
⑤ |
Material |
|---|---|
|
SS |
Stainless steel 304 |
|
⑥ |
Option2 |
|---|---|
|
U |
UCV Cleaning |

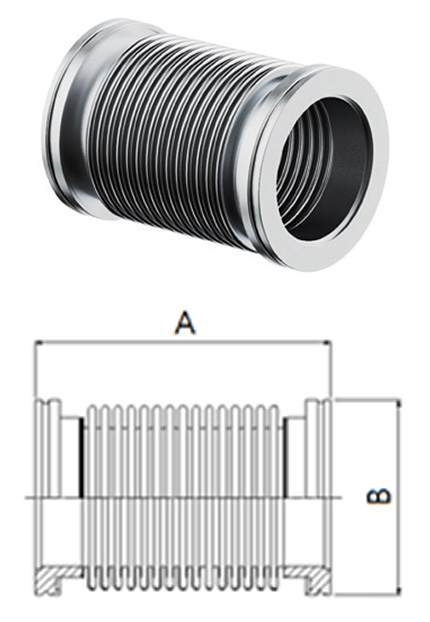

Dimension
Bellows
|
NW |
Part No. (Basic) |
A |
B |
|---|---|---|---|
|
63 |
AVC-KBW63DBSS |
132 |
95 |
|
80 |
AVC-KBW80DBSS |
100 |
110 |
|
100 |
AVC-KBW100DBSS |
132 |
130 |
|
160 |
AVC-KBW160DBSS |
150 |
180 |
|
200 |
AVC-KBW200DBSS |
150 |
240 |
|
250 |
AVC-KBW250DBSS |
150 |
290 |
* Flanges : Stainless steel 304
Bellows : Stainless steel 304
* A = Unstressed length
