Specification
- NW10 to 50, NW63 to 250 and NW, ISO, CF Vacuum Components
- Materials : SUS304 / SUS316 / Al
- Other machining products
Ordering Information
|
① |
Type |
|---|---|
|
K |
ISO-K Clamp Flange Components |
|
② |
Item |
|---|---|
|
RT |
Reducing Tee |
|
③ |
Size |
|---|---|
|
160D63D |
NW 160 – NW 63 |
|
160D100D |
NW 160 – NW 100 |
|
250D200D |
NW 250 – NW 200 |
|
④ |
Grade |
|---|---|
|
B |
BA Grade (General) |
|
E |
EP Grade |
|
⑤ |
Material |
|---|---|
|
SS |
Stainless steel 304 |
|
⑥ |
Option2 |
|---|---|
|
U |
UCV Cleaning |
Dimension

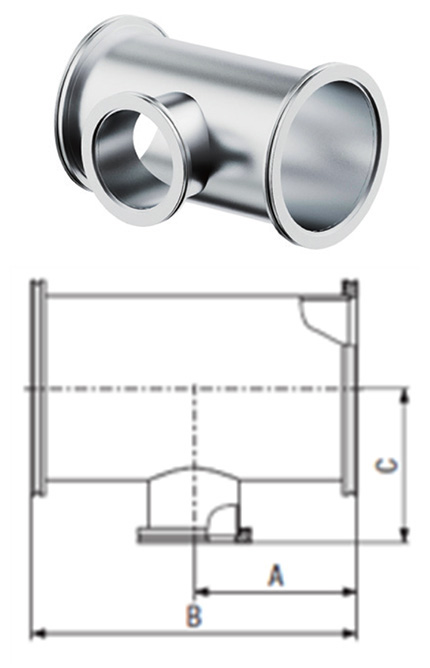

Reducing Tee
|
NW |
Ordering No. (Basic) |
A |
B |
C |
|---|---|---|---|---|
|
160 / 63 |
AVC-KRT160D63DBSS |
138 |
276 |
130 |
|
160 / 100 |
AVC-KRT160D100DBSS |
138 |
276 |
131 |
|
250 / 200 |
AVC-KRT250D200DBSS |
190 |
380 |
208 |
* Stainless steel 304
* BA Grade
* Surface treatment is available
