Specification
- NW10 to 50, NW63 to 250 and NW, ISO, CF Vacuum Components
- Materials : SUS304 / SUS316 / Al
- Other machining products
Ordering Information
|
① |
Type |
|---|---|
|
KF |
ISO-KF Small Flange Components |
|
② |
Item |
|---|---|
|
CRW |
Clamping Ring Wing Nut |
|
CRH |
Clamping Ring Hex Nut |
|
CG |
Claw Grip |
|
③ |
Size |
|---|---|
|
10D16D |
NW 10 – NW 16 |
|
10D50D |
NW 10 – NW 50 |
|
20D25D |
NW 20 – NW 25 |
|
32D40D |
NW 32 – NW 40 |
|
50D |
NW 50 |
|
④ |
Grade |
|---|---|
|
B |
BA Grade (General) |
|
E |
EP Grade |
|
⑤ |
Material |
|---|---|
|
SS |
Stainless steel 304 |
|
AL |
Aluminum |
|
⑥ |
Option1 |
|---|---|
|
1 |
Claw Grip_SUS Bolt & Washer |
|
⑦ |
Option2 |
|---|---|
|
U |
UCV Cleaning |
Dimension

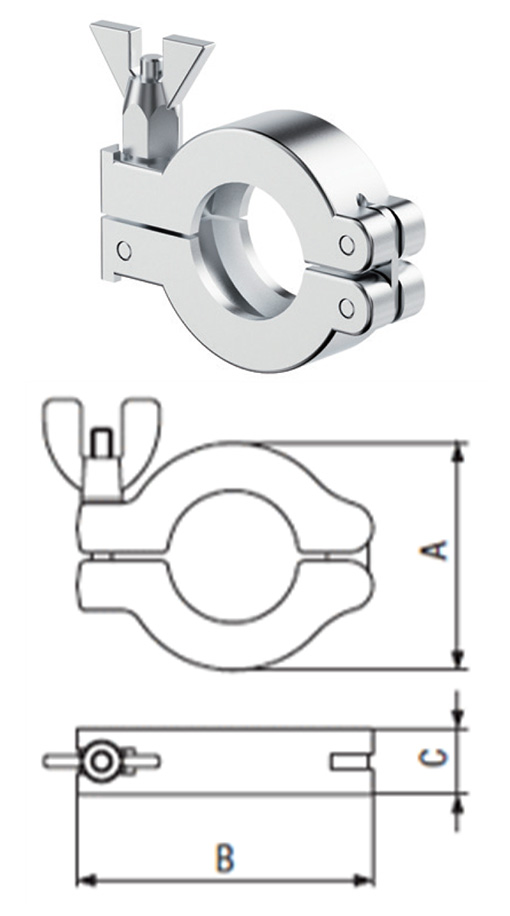

Clamping Ring Wing Nut
|
NW |
Ordering No. (Basic) |
A |
B |
C |
|---|---|---|---|---|
|
10 – 16 |
AVC-KFCRW10D16DBAL |
44.7 |
67.7 |
18.5 |
|
20 – 25 |
AVC-KFCRW20D25DBAL |
51.9 |
73.2 |
18.5 |
|
32 – 40 |
AVC-KFCRW32D40DBAL |
69.8 |
91 |
19.5 |
|
50 |
AVC-KFCRW50DBAL |
92.2 |
123 |
25 |
* Clamping ring & Nut : Aluminum
* Bolt : Stainless steel
Clamping Ring Hex Nut
|
NW |
Ordering No. (Basic) |
A |
B |
C |
|---|---|---|---|---|
|
10 – 16 |
AVC-KFCRH10D16DBAL |
44.7 |
67.7 |
18.5 |
|
20 – 25 |
AVC-KFCRH20D25DBAL |
51.9 |
73.2 |
18.5 |
|
32 – 40 |
AVC-KFCRH32D40DBAL |
69.8 |
91 |
19.5 |
|
50 |
AVC-KFCRH5DBAL |
92.2 |
123 |
25 |
* Clamping ring & Nut : Aluminum
* Bolt : Stainless steel

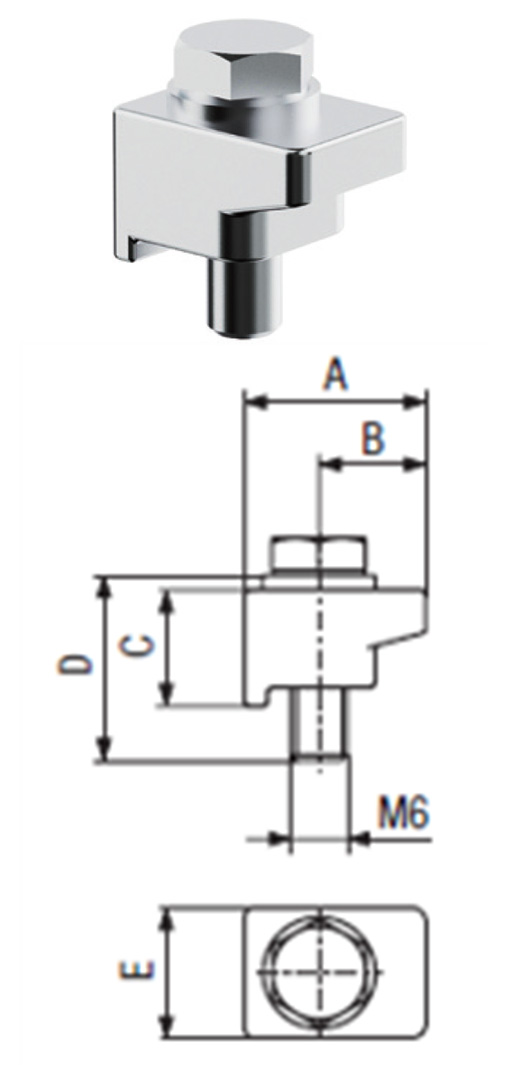

Claw Grip
|
NW |
Ordering No. (Basic) |
A |
B |
C |
D |
E |
|---|---|---|---|---|---|---|
|
10 – 50 |
AVC-KFCG10D50DBAL |
19.5 |
11.5 |
12.5 |
20 |
14 |
* Claw : Aluminum & Stainless steel 304
* Bolt & Washer : Steel nickel plated
* Option No. : 1 (Claw Grip_SUS Bolt & Washer)
* Set of 4 pcs.
