Specification
- NW10 to 50, NW63 to 250 and NW, ISO, CF Vacuum Components
- Materials : SUS304 / SUS316 / Al
- Other machining products
Ordering Information
|
① |
Type |
|---|---|
|
KF |
ISO-KF Small Flange Components |
|
② |
Item |
|---|---|
|
CS |
Cross |
|
90E |
Elbow 90° |
|
45E |
Elbow 45° |
|
IP |
Intermediate Piece |
|
ET |
Tee |
|
③ |
Size |
|---|---|
|
16D |
NW 16 |
|
25D |
NW 25 |
|
40D |
NW 40 |
|
50D |
NW 50 |
|
④ |
Grade |
|---|---|
|
B |
BA Grade (General) |
|
E |
EP Grade |
|
⑤ |
Material |
|---|---|
|
SS |
Stainless steel 304 |
|
⑥ |
Option2 |
|---|---|
|
U |
UCV Cleaning |
Dimension

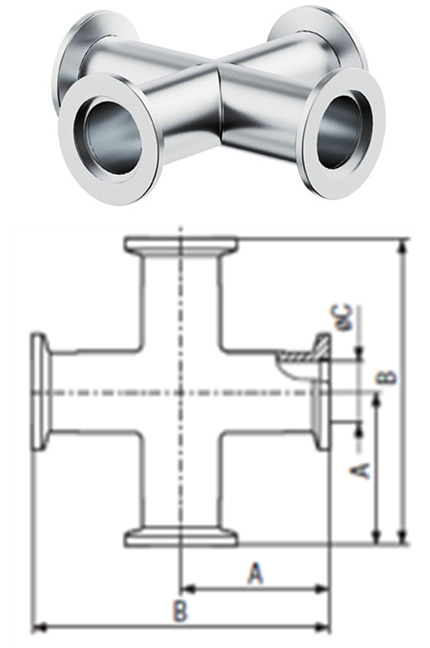

Cross
|
NW |
Ordering No. (Basic) |
A |
B |
C |
|---|---|---|---|---|
|
16 |
AVC-KFCS16DBSS |
40 |
80 |
15.75 |
|
25 |
AVC-KFCS25DBSS |
50 |
100 |
22.1 |
|
40 |
AVC-KFCS40DBSS |
65 |
130 |
34.8 |
|
50 |
AVC-KFCS50DBSS |
70 |
140 |
47.5 |
* Stainless steel 304
* BA Grade
* Surface treatment is available

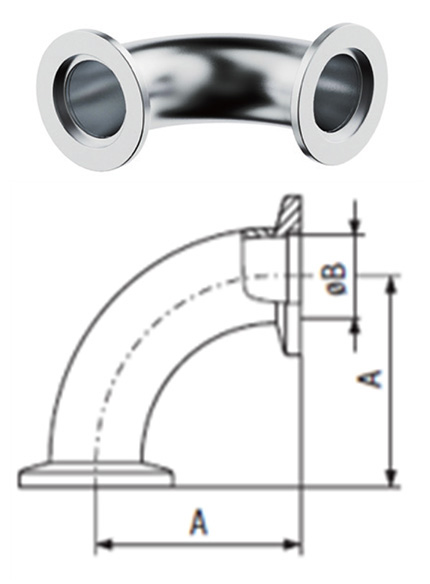

Elbow 90°
|
NW |
Ordering No. (Basic) |
A |
B |
C |
|---|---|---|---|---|
|
16 |
AVC-KF90E16DBSS |
40 |
15.75 |
28.6 |
|
25 |
AVC-KF90E25DBSS |
50 |
22.1 |
38.1 |
|
40 |
AVC-KF90E40DBSS |
65 |
34.8 |
57.2 |
|
50 |
AVC-KF90E50DBSS |
80 |
47.5 |
76.2 |
* Stainless steel 304
* C = Bend Radius
* BA Grade
* Surface treatment is available

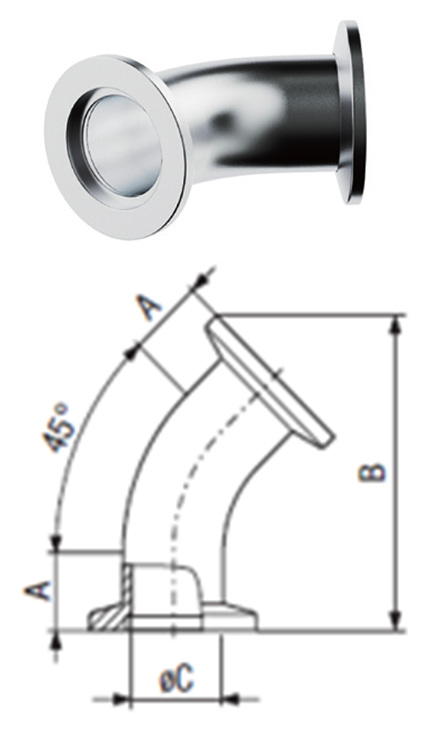

Elbow 45°
|
NW |
Ordering No. (Basic) |
A |
B |
C |
|---|---|---|---|---|
|
16 |
AVC-KF45E16DBSS |
6 |
54.4 |
15.75 |
|
25 |
AVC-KF45E25DBSS |
12 |
68.3 |
22.1 |
|
40 |
AVC-KF45E40DBSS |
13 |
87.9 |
34.8 |
* Stainless steel 304
* BA Grade
* Surface treatment is available

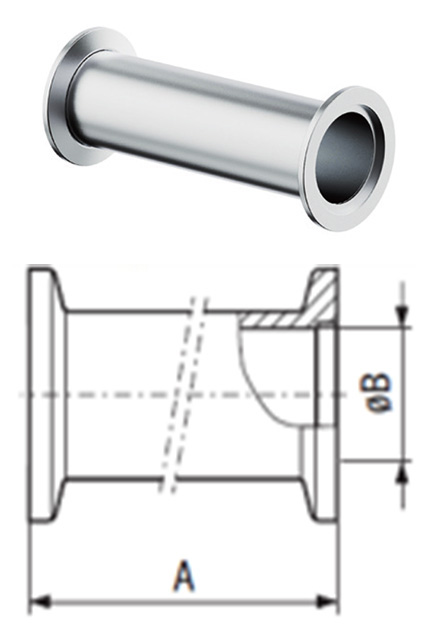

Intermediate Piece
|
NW |
Ordering No. (Basic) |
A |
B |
|---|---|---|---|
|
16 |
AVC-KFIP16DBSS |
80 |
15.75 |
|
25 |
AVC-KFIP25DBSS |
100 |
22.1 |
|
40 |
AVC-KFIP40DBSS |
130 |
34.8 |
|
50 |
AVC-KFIP50DBSS |
140 |
47.5 |
* Stainless steel 304
* BA Grade
* Surface treatment is available

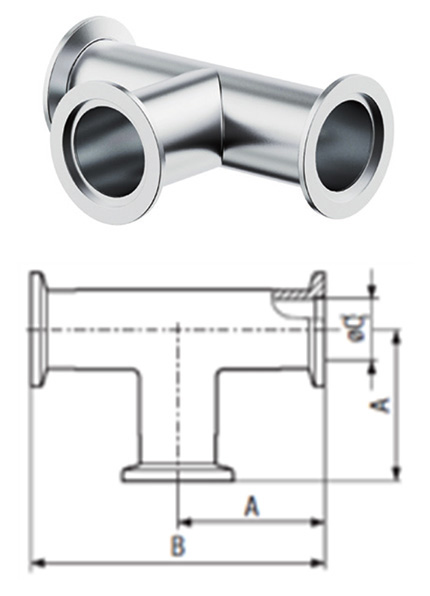

Tee
|
NW |
Ordering No. (Basic) |
A |
B |
C |
|---|---|---|---|---|
|
16 |
AVC-KFET16DBSS |
40 |
80 |
15.75 |
|
25 |
AVC-KFET25DBSS |
50 |
100 |
22.1 |
|
40 |
AVC-KFET40DBSS |
65 |
130 |
34.8 |
|
50 |
AVC-KFET50DBSS |
70 |
140 |
47.5 |
* Stainless steel 304
* BA Grade
* Surface treatment is available
