ISO-KF Small Flange Components: Pipe Fittings – Reducer
Specification
- NW10 to 50, NW63 to 250 and NW, ISO, CF Vacuum Components
- Materials : SUS304 / SUS316 / Al
- Other machining products
Ordering Information
|
① |
Type |
|---|---|
|
KF |
ISO-KF Small Flange Components |
|
② |
Item |
|---|---|
|
RT |
Reducing Tee |
|
RD |
Reducer |
|
③ |
Size |
|---|---|
|
25D16D |
NW 25 – NW 16 |
|
40D16D |
NW 40 – NW 16 |
|
40D25D |
NW 40 – NW 25 |
|
50D16D |
NW 50 – NW 16 |
|
50D25D |
NW 50 – NW 25 |
|
50D40D |
NW 50 – NW 40 |
|
④ |
Grade |
|---|---|
|
B |
BA Grade (General) |
|
E |
EP Grade |
|
⑤ |
Material |
|---|---|
|
SS |
Stainless steel 304 |
|
⑥ |
Option2 |
|---|---|
|
U |
UCV Cleaning |
Dimension
Reducing Tee
|
NW |
Ordering No. (Basic) |
A |
B |
C |
|---|---|---|---|---|
|
25 / 16 |
AVC-KFRT25D16DBSS |
50 |
100 |
40 |
|
40 / 16 |
AVC-KFRT40D16DBSS |
65 |
130 |
40 |
|
40 / 25 |
AVC-KFRT40D25DBSS |
65 |
130 |
50 |
|
50 / 16 |
AVC-KFRT50D16DBSS |
70 |
140 |
50 |
|
50 / 25 |
AVC-KFRT50D25DBSS |
70 |
140 |
65 |
|
50 / 40 |
AVC-KFRT50D40DBSS |
70 |
140 |
65 |
* Stainless steel 304
* BA Grade
* Surface treatment is available

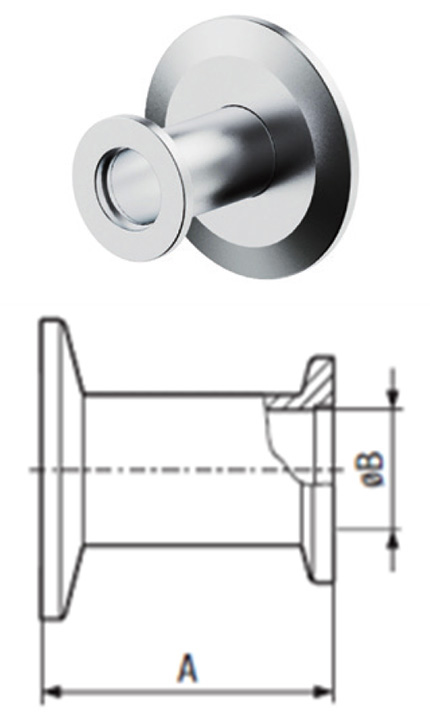

Reducer
|
NW |
Ordering No. (Basic) |
A |
B |
|---|---|---|---|
|
25 / 16 |
AVC-KFRD25D16DBSS |
40 |
15.75 |
|
40 / 16 |
AVC-KFRD40D16DBSS |
40 |
15.75 |
|
40 / 25 |
AVC-KFRD40D25DBSS |
40 |
22.1 |
|
50 / 16 |
AVC-KFRD50D16DBSS |
40 |
15.75 |
|
50 / 25 |
AVC-KFRD50D25DBSS |
40 |
22.1 |
|
50 / 40 |
AVC-KFRD50D40DBSS |
40 |
34.8 |
* Stainless steel 304
* BA Grade
* Surface treatment is available
