Specification
- NW10 to 50, NW63 to 250 and NW, ISO, CF Vacuum Components
- Materials : SUS304 / SUS316 / Al
- Other machining products
Ordering Information
|
① |
Type |
|---|---|
|
K |
ISO-K Clamp Flange Components |
|
② |
Item |
|---|---|
|
HN |
Hex Nipple |
|
RN |
Rectangle Nut |
|
③ |
Size |
|---|---|
|
04R |
1/4” PT |
|
06R |
3/8” PT |
|
06M |
06 MM |
|
08R |
1/2” PT |
|
12R |
3/4” PT |
|
16R |
1” PT |
|
④ |
Grade |
|---|---|
|
B |
BA Grade (General) |
|
E |
EP Grade |
|
⑤ |
Material |
|---|---|
|
SS |
Stainless steel 316 |
|
CS |
Carbon steel |
|
⑥ |
Option2 |
|---|---|
|
U |
UCV Cleaning |
Dimension

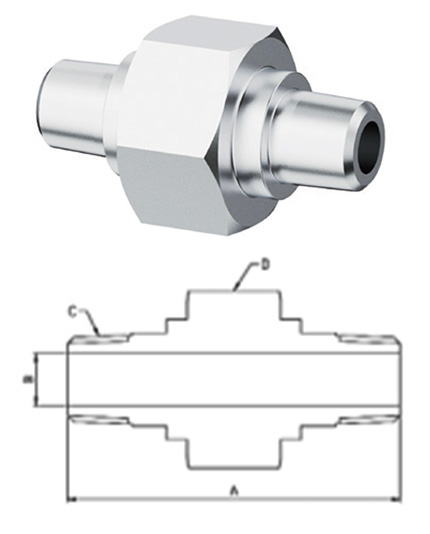

Hex Nipple
|
INCH |
Ordering No. (Basic) |
A |
B |
C |
D |
|---|---|---|---|---|---|
|
04R |
AVC-OHN04RBSS |
50 |
7.53 |
1/4” PT |
26.98 |
|
06R |
AVC-OHN06RBSS |
50 |
10 |
3/8” PT |
26.98 |
|
08R |
AVC-OHN08RBSS |
50 |
10.22 |
1/2” PT |
26.98 |
|
12R |
AVC-OHN12RBSS |
60 |
15.75 |
3/4” PT |
28.57 |
|
16R |
AVC-OHN16RBSS |
65 |
22.1 |
1” PT |
34.92 |
* Stainless steel 316

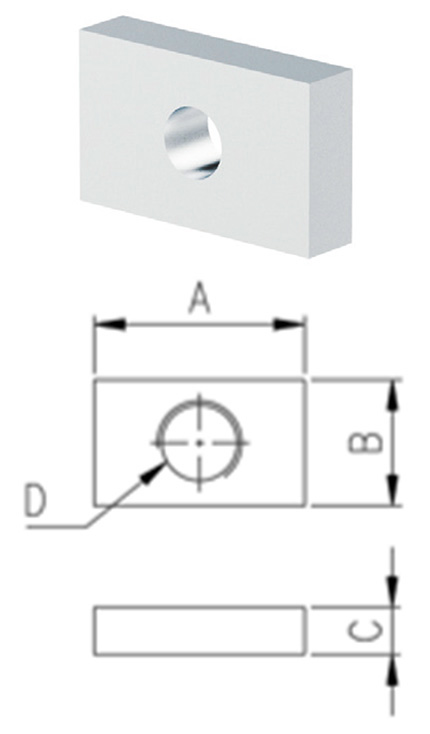

Rectangle Nut
|
Millimeter |
Ordering No. (Basic) |
A |
B |
C |
D |
|---|---|---|---|---|---|
|
06M |
AVC-ORN06MBCS |
20 |
12 |
4.5 |
M6 |
* Carbon steel (SWCH1010) & Nickel plated
* D : Tapped hole
