Specification
- NW10 to 50, NW63 to 250 and NW, ISO, CF Vacuum Components
- Materials : SUS304 / SUS316 / Al
- Other machining products
Ordering Information
|
① |
Type |
|---|---|
|
K |
ISO-K Clamp Flange Components |
|
② |
Item |
|---|---|
|
RHN |
Reducing Hex Nipple |
|
③ |
Size |
|---|---|
|
06R04R |
3/8” PT – 1/4” PT |
|
08R04R |
1/2” PT – 1/4” PT |
|
08R06R |
1/2” PT – 3/8” PT |
|
12R04R |
3/4” PT – 1/4” PT |
|
12R08R |
3/4” PT – 1/2” PT |
|
④ |
Grade |
|---|---|
|
B |
BA Grade (General) |
|
E |
EP Grade |
|
⑤ |
Material |
|---|---|
|
SS |
Stainless steel 316 |
|
⑥ |
Option2 |
|---|---|
|
U |
UCV Cleaning |

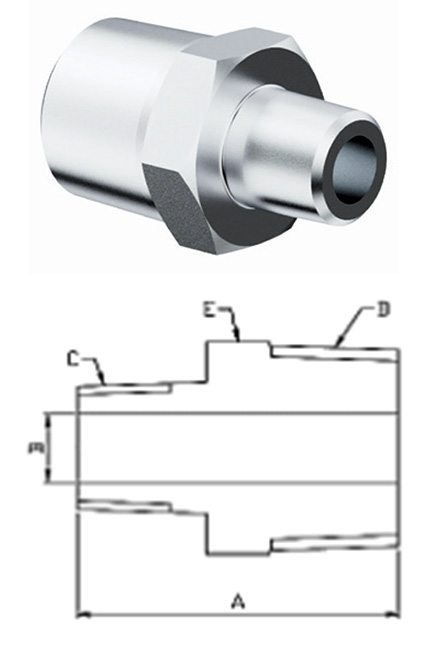

Dimension
Reducing Hex Nipple
|
INCH |
Ordering No. (Basic) |
A |
B |
C |
D |
E |
|---|---|---|---|---|---|---|
|
06R04R |
AVC-ORHN06R04RBSS |
35 |
7.53 |
1/4” PT |
3/8” PT |
17.46 |
|
08R04R |
AVC-ORHN08R04RBSS |
37.5 |
7.53 |
1/4” PT |
1/2” PT |
22.22 |
|
08R06R |
AVC-ORHN08R06RBSS |
37.5 |
10 |
3/8” PT |
1/2” PT |
22.22 |
|
12R04R |
AVC-ORHN12R04RBSS |
45 |
7.53 |
1/4” PT |
3/4” PT |
26.98 |
|
12R08R |
AVC-ORHN12R08RBSS |
45 |
10.22 |
1/2” PT |
3/4” PT |
26.98 |
* Stainless steel 316
