Specification
- NW10 to 50, NW63 to 250 and NW, ISO, CF Vacuum Components
- Materials : SUS304 / SUS316 / Al
- Other machining products
Ordering Information
|
① |
Type |
|---|---|
|
O |
Vacuum Components – Others |
|
② |
Item |
|---|---|
|
DF |
Diffuser |
|
③ |
Size |
|---|---|
|
25D |
NW 25 |
|
④ |
Grade |
|---|---|
|
B |
BA Grade (General) |
|
E |
EP Grade |
|
⑤ |
Material |
|---|---|
|
SS |
Stainless steel 316 |
|
⑥ |
Option1 |
|---|---|
|
1 |
Membrane Ø 20 |
|
2 |
Membrane Ø 30 |
|
⑦ |
Option2 |
|---|---|
|
U |
UCV Cleaning |
Dimension

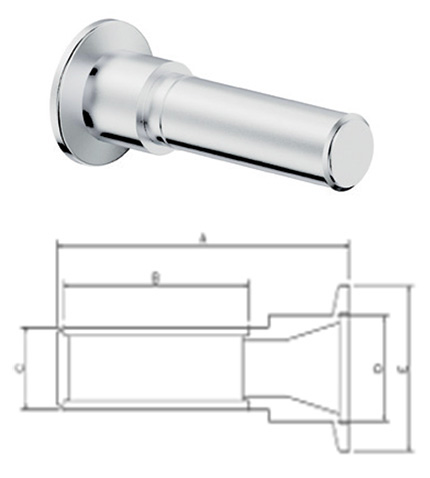

Diffuser
|
NW |
Ordering No. (Basic) |
A |
B |
C |
D |
E |
|---|---|---|---|---|---|---|
|
25 |
AVC-ODF25DBSS-1 |
87 |
55 |
19.7 |
25.4 |
40 |
* Body : Stainless steel 316
* Membrane : Stainless steel 316
* Option No. : 1 (Membrane Ø 20)
Diffuser
|
NW |
Ordering No. (Basic) |
A |
B |
C |
D |
E |
|
25 |
AVC-ODF25DBSS-2 |
87 |
55 |
30.8 |
25.4 |
40 |
* Body : Stainless steel 316
* Membrane : Stainless steel 316
* Option No. : 2 (Membrane Ø 30)
