Specification
|
Size |
1/4″ |
3/8” |
1/2″ |
|---|---|---|---|
|
Cv Value |
0.35 |
1.1 |
1.1 |
|
Max. Working Pressure |
16.2 MPa |
||
|
Craking Pressure |
2.26 kPa |
||
|
Back Pressure Seal |
29.4 kPa |
||
|
Max. Working Temp. |
-10 ℃ ~ 80 ℃ |
||
|
Atmospheric Temp. |
-10 ℃ ~ 60 ℃ |
||
|
Internal Leakage Test Pressure ≤ 1 x 10-2 Torr Holding Time ≥ 1 min. |
≤ 1×10-9 mbar.l/sec |
||
|
Particle Inspection Pressure :30 ~ 60 psi N2 Gas Sample Volume : 1 CFM / 0.1 ㎛ and Larger |
No Count |
||

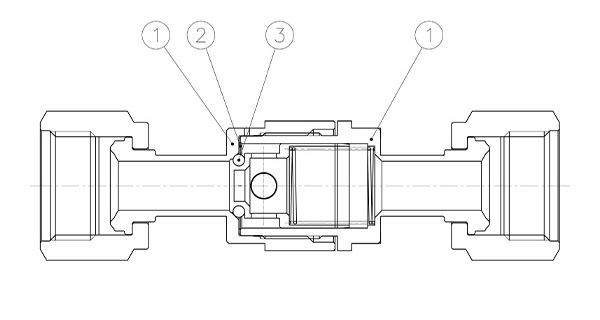

Materials
| Parts | Materials |
|---|---|
|
① Body |
SUS316L (Single Melt / Double Melt) |
|
② Gasket |
SUS316L |
|
③ Seat O-Ring |
FFKM |
Surface Roughness
|
BA |
EP |
|---|---|
|
Ra ≤ 10 μinch Ry ≤ 3.0 ㎛ |
Ra ≤ 5 μinch Ry ≤ 0.7 ㎛ |
|
Cut off Length : 0.8 ㎜ |
Cut off Length : 0.25 ㎜ |
|
Measuring Length : 4 ㎜ |
Measuring Length : 1.25 ㎜ |
|
Bright Annealed |
Electro Polished |
Ordering Information
|
Product |
Size |
Connection |
Grade |
Material |
||||
|---|---|---|---|---|---|---|---|---|
|
CV |
04 |
1/4” |
MV |
Male |
E |
EP |
D |
SUS316L Double Melt |
|
06 |
3/8” |
FV |
Female |
B |
BA |
S |
SUS316L Single Melt |
|
|
08 |
1/2″ |
LOK |
Lok |
|||||

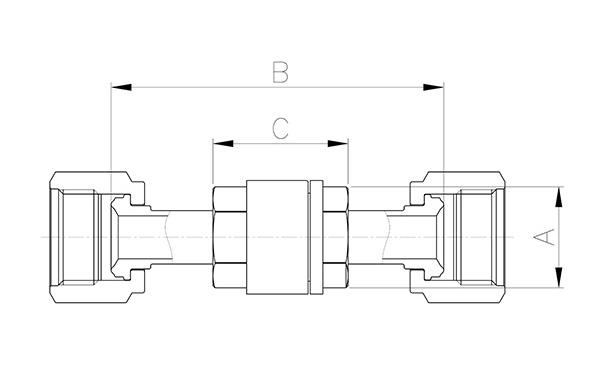

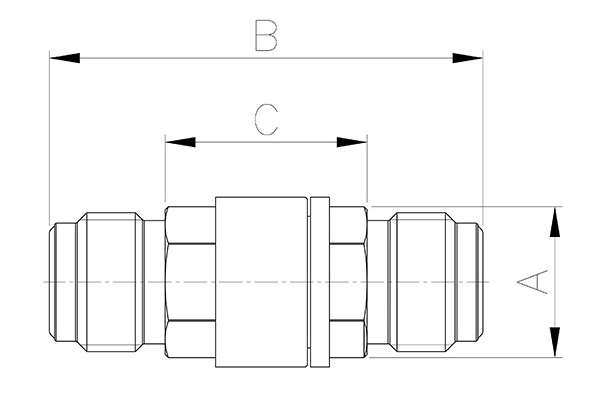

Dimension
|
Model |
Connection |
Size |
A (㎜) |
B (㎜) |
C (㎜) |
|---|---|---|---|---|---|
 |
Male |
1/4″ |
19 |
56.4 |
25.4 |
|
1/2″ |
24 |
69 |
32 |
||
 |
Female |
1/4″ |
19 |
70 |
25.4 |
|
1/2″ |
24 |
79 |
32 |
||
 |
Lok |
1/4″ |
19 |
46 |
25.4 |
|
3/8″ |
24 |
55.9 |
32 |
||
|
1/2″ |
24 |
57.8 |
32 |
