Specification
- Product:
– Stainless Steel fittings comply with ASME BPE standards. - Sizes:
– Stainless Steel fittings are available in sizes .” – 6” O.D. tube size.
Materials
Fittings are fabricated in AISI 316L Stainless Steel with sulfur content of 0.005-0.017% achieving superior repeatability for automatic orbital welding process
Surface Finish
Reference: ASME BPE-2014, Part SF, Table SF-2.4-1.
|
Surface Finish Code |
BPE Surface Designation |
Inside Surface |
Outside Surface |
||
|---|---|---|---|---|---|
|
Ra Maximum |
Surface Condition |
Surface Condition |
|||
|
μ-in. |
μm |
||||
|
PL |
SF1 |
20 |
0.51 |
Mechanically Polished* |
Mechanically Polished |
|
PM |
SF4 |
15 |
0.38 |
Mechanically Polished* & Electro-polished |
Mechanically Polished |
*: Or any other finishing method that meets the Ra max.
ASFLOW EP Exceeds the ASME BPE Quality Requirements
- The table below shows how ASFLOW EP exceeds the ASME BPE quality requirements.
- Please refer to ASFLOW homepage “Bio Tubes”
|
Attribute |
ASME BPE Recommendation |
ASFLOW Electro-polishing |
|---|---|---|
|
EP layer Thickness |
15Å < |
20Å < |
|
Cr/Fe ratio |
1 < |
1.5 < |
Ordering Information
|
① |
Brand |
|---|---|
|
ABB |
ASFLOW BIO FITTING |
|
ABC |
ASFLOW BIO GASKET |
|
② |
Item |
|---|---|
|
TE7WWCS |
SHORT OUTLET TEE CLAMP ONE END |
|
TEG7S |
SHORT OUTLET TEE CLAMP THREE END |
|
TE7WCSW |
SHORT OUTLET RUN TEE CLAMP ONE END |
|
③ |
Material |
|---|---|
|
6L |
Stainless steel 316L |
|
S4 |
Stainless steel 304 |
|
④ |
Size |
|---|---|
|
04 |
1/4″ |
|
06 |
3/8″ |
|
08 |
1/2″ |
|
12 |
3/4″ |
|
16 |
1″ |
|
24 |
1-1/2″ |
|
32 |
2″ |
|
40 |
2-1/2″ |
|
48 |
3″ |
|
64 |
4″ |
|
96 |
6″ |
|
⑤ |
Surface Finish Code |
|---|---|
|
PL |
SF1 |
|
PM |
SF4 |
Dimension

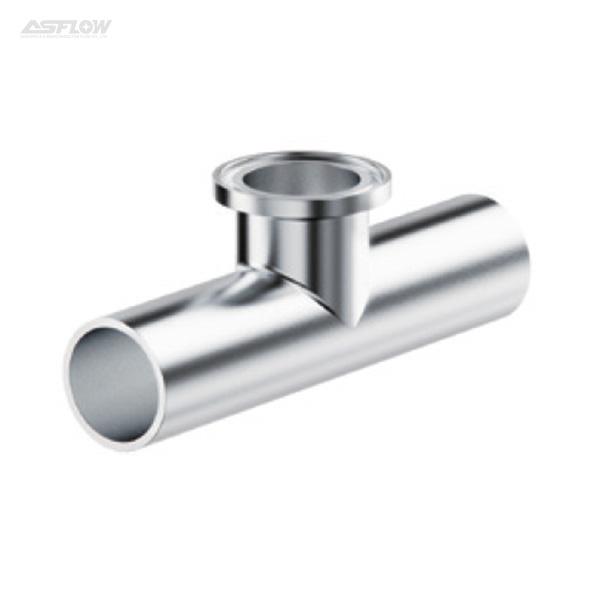

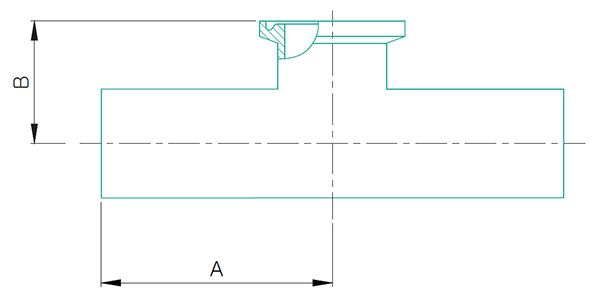

ABB-TE7WWCS –
SHORT OUTLETTEE
CLAMP ONE END
BPE TABLE # DT-4.1.1-2
|
Nominal Size in. |
Dimensions |
Ordering Code |
|||
|---|---|---|---|---|---|
|
A in. |
A ㎜ |
B in. |
B ㎜ |
||
|
1/4″ |
1.750 |
44.5 |
1.000 |
25.4 |
ABB-TE7WWCS6L.25-.. |
|
3/8″ |
1.750 |
44.5 |
1.000 |
25.4 |
ABB-TE7WWCS6L.375-.. |
|
1/2″ |
1.875 |
47.6 |
1.000 |
25.4 |
ABB-TE7WWCS6L.5-.. |
|
3/4″ |
2.000 |
50.8 |
1.125 |
28.6 |
ABB-TE7WWCS6L.75-.. |
|
1″ |
2.125 |
54.0 |
1.125 |
28.6 |
ABB-TE7WWCS6L1.0-.. |
|
1-1/2″ |
2.375 |
60.3 |
1.375 |
34.9 |
ABB-TE7WWCS6L1.5-.. |
|
2″ |
2.875 |
73.0 |
1.625 |
41.3 |
ABB-TE7WWCS6L2.0-.. |
|
2-1/2″ |
3.125 |
79.4 |
1.875 |
47.6 |
ABB-TE7WWCS6L2.5-.. |
|
3″ |
3.375 |
85.7 |
2.125 |
54.0 |
ABB-TE7WWCS6L3.0-.. |
|
4″ |
4.125 |
104.8 |
2.750 |
69.9 |
ABB-TE7WWCS6L4.0-.. |
|
6″ |
5.625 |
142.9 |
4.625 |
117.5 |
ABB-TE7WWCS6L6.0-.. |

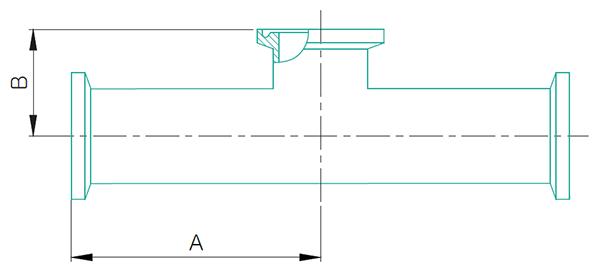

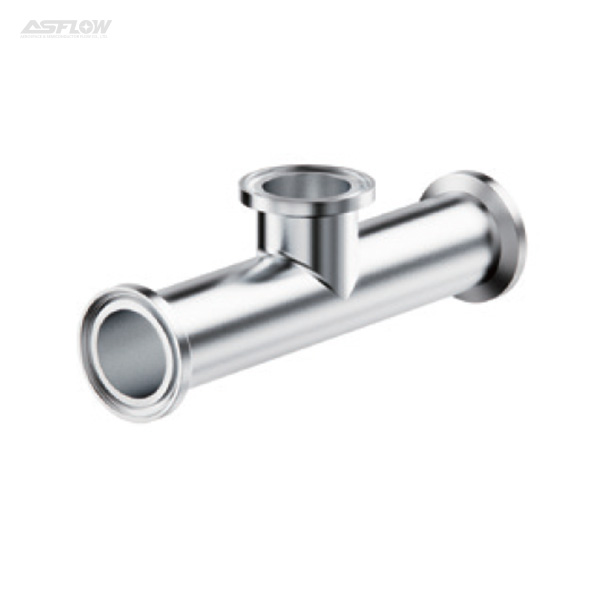

ABB-TEG7S –
SHORT OUTLET TEE
CLAMP THREE END
BPE TABLE # DT-4.1.2-5
|
Nominal Size in. |
Dimensions |
Ordering Code |
|||
|---|---|---|---|---|---|
|
A in. |
A ㎜ |
B in. |
B ㎜ |
||
|
1/2″ |
2.250 |
57.2 |
1.000 |
25.4 |
ABB-TEG7S6L.5-.. |
|
3/4″ |
2.375 |
60.3 |
1.125 |
28.6 |
ABB-TEG7S6L.75-.. |
|
1″ |
2.625 |
66.7 |
1.125 |
28.6 |
ABB-TEG7S6L1.0-.. |
|
1-1/2″ |
2.875 |
73.0 |
1.375 |
34.9 |
ABB-TEG7S6L1.5-.. |
|
2″ |
3.375 |
85.7 |
1.625 |
41.3 |
ABB-TEG7S6L2.0-.. |
|
2-1/2″ |
3.625 |
92.1 |
1.875 |
47.6 |
ABB-TEG7S6L2.5-.. |
|
3″ |
3.875 |
98.4 |
2.125 |
54.0 |
ABB-TEG7S6L3.0-.. |
|
4″ |
4.750 |
120.7 |
2.750 |
69.9 |
ABB-TEG7S6L4.0-.. |
|
6″ |
7.125 |
181.0 |
4.625 |
117.5 |
ABB-TEG7S6L6.0-.. |

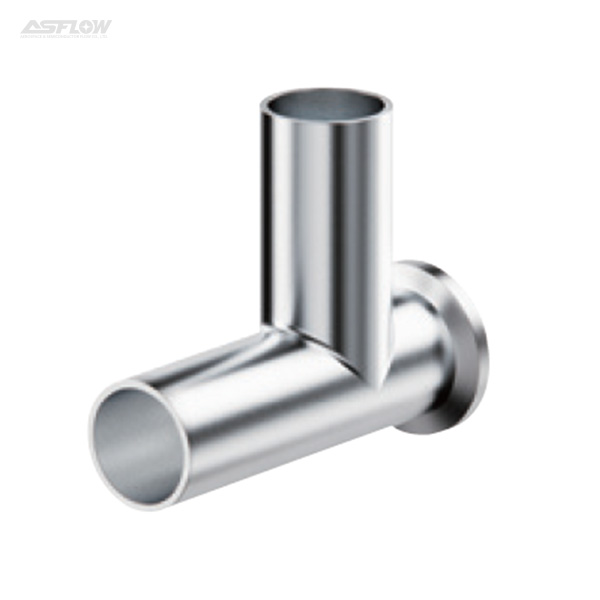

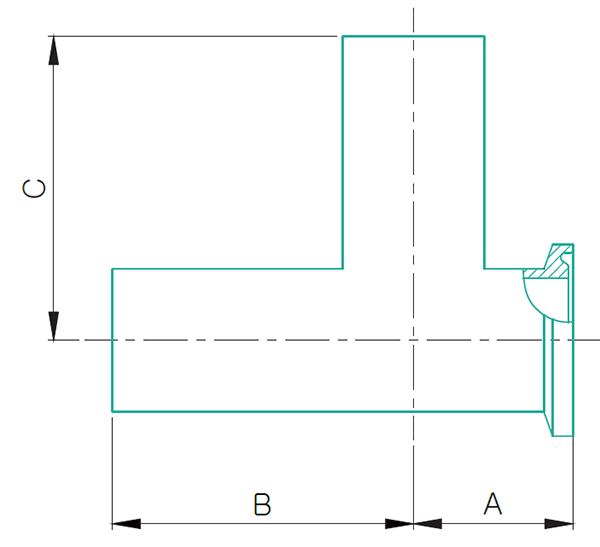

ABB-TE7WCSW –
SHORT OUTLET RUN TEE
CLAMP ONE END
BPE TABLE # DT-4.1.2-3
|
Nominal Size in. |
Dimensions |
Ordering Code |
|||||
|---|---|---|---|---|---|---|---|
|
A in. |
A ㎜ |
B in. |
B ㎜ |
C in. |
C ㎜ |
||
|
1/4″ |
0.875 |
22.2 |
1.750 |
44.5 |
1.750 |
44.5 |
ABB-TE7WCSW6L.25-.. |
|
3/8″ |
0.875 |
22.2 |
1.750 |
44.5 |
1.750 |
44.5 |
ABB-TE7WCSW6L.375-.. |
|
1/2″ |
0.875 |
22.2 |
1.875 |
47.6 |
1.875 |
47.6 |
ABB-TE7WCSW6L.5-.. |
|
3/4″ |
1.000 |
25.4 |
2.000 |
50.8 |
2.000 |
50.8 |
ABB-TE7WCSW6L.75-.. |
|
1″ |
1.125 |
28.6 |
2.125 |
54.0 |
2.125 |
54.0 |
ABB-TE7WCSW6L1.0-.. |
|
1-1/2″ |
1.375 |
34.9 |
2.375 |
60.3 |
2.375 |
60.3 |
ABB-TE7WCSW6L1.5-.. |
|
2″ |
1.625 |
41.3 |
2.875 |
73.0 |
2.875 |
73.0 |
ABB-TE7WCSW6L2.0-.. |
|
2-1/2″ |
1.875 |
47.6 |
3.125 |
79.4 |
3.125 |
79.4 |
ABB-TE7WCSW6L2.5-.. |
|
3″ |
2.125 |
54.0 |
3.375 |
85.7 |
3.375 |
85.7 |
ABB-TE7WCSW6L3.0-.. |
|
4″ |
2.750 |
69.9 |
4.125 |
104.8 |
4.125 |
104.8 |
ABB-TE7WCSW6L4.0-.. |
|
6″ |
4.625 |
117.5 |
5.625 |
142.9 |
5.625 |
142.9 |
ABB-TE7WCSW6L6.0-.. |
