Specification
- Product:
– Stainless Steel fittings comply with ASME BPE standards. - Sizes:
– Stainless Steel fittings are available in sizes .” – 6” O.D. tube size.
Materials
Fittings are fabricated in AISI 316L Stainless Steel with sulfur content of 0.005-0.017% achieving superior repeatability for automatic orbital welding process
Surface Finish
Reference: ASME BPE-2014, Part SF, Table SF-2.4-1.
|
Surface Finish Code |
BPE Surface Designation |
Inside Surface |
Outside Surface |
||
|---|---|---|---|---|---|
|
Ra Maximum |
Surface Condition |
Surface Condition |
|||
|
μ-in. |
μm |
||||
|
PL |
SF1 |
20 |
0.51 |
Mechanically Polished* |
Mechanically Polished |
|
PM |
SF4 |
15 |
0.38 |
Mechanically Polished* & Electro-polished |
Mechanically Polished |
*: Or any other finishing method that meets the Ra max.
ASFLOW EP Exceeds the ASME BPE Quality Requirements
- The table below shows how ASFLOW EP exceeds the ASME BPE quality requirements.
- Please refer to ASFLOW homepage “Bio Tubes”
|
Attribute |
ASME BPE Recommendation |
ASFLOW Electro-polishing |
|---|---|---|
|
EP layer Thickness |
15Å < |
20Å < |
|
Cr/Fe ratio |
1 < |
1.5 < |
Ordering Information
|
① |
Brand |
|---|---|
|
ABB |
ASFLOW BIO FITTING |
|
ABC |
ASFLOW BIO GASKET |
|
② |
Item |
|---|---|
|
TE7WWW |
EQUAL TEE |
|
TEG7 |
EQUAL TEE CLAMP THREE END |
|
③ |
Material |
|---|---|
|
6L |
Stainless steel 316L |
|
S4 |
Stainless steel 304 |
|
④ |
Size |
|---|---|
|
04 |
1/4″ |
|
06 |
3/8″ |
|
08 |
1/2″ |
|
12 |
3/4″ |
|
16 |
1″ |
|
24 |
1-1/2″ |
|
32 |
2″ |
|
40 |
2-1/2″ |
|
48 |
3″ |
|
64 |
4″ |
|
96 |
6″ |
|
⑤ |
Surface Finish Code |
|---|---|
|
PL |
SF1 |
|
PM |
SF4 |
Dimension

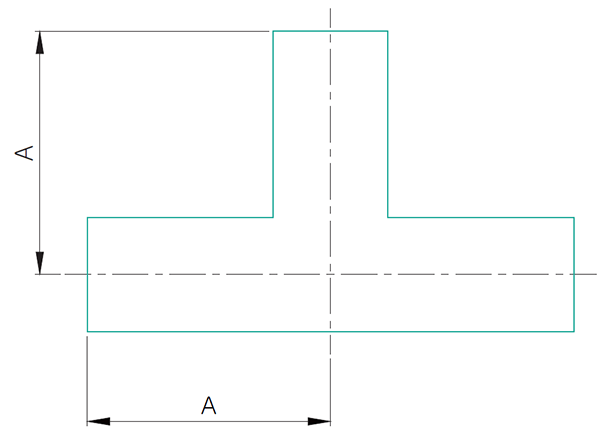

ABB-TE7WWW-EQUAL TEE
BPE TABLE # DT-4.1.2-1
| Nominal Size in. | Dimensions | Ordering Code | |
|---|---|---|---|
| A in. | A mm | ||
| 1/4″ | 1.750 | 44.5 | ABB-TE7WWW6L.25-.. |
| 3/8″ | 1.750 | 44.5 | ABB-TE7WWW6L.375- |
| 1/2″ | 1.875 | 47.6 | ABB-TE7WWW6L.5-.. |
| 3/4″ | 2.000 | 50.8 | ABB-TE7WWW6L.75-.. |
| 1″ | 2.125 | 54.0 | ABB-TE7WWW6L1.0-.. |
| 1-1/2″ | 2.375 | 60.3 | ABB-TE7WWW6L1.5-.. |
| 2″ | 2.875 | 73.0 | ABB-TE7WWW6L2.0-.. |
| 2-1/2″ | 3.125 | 79.4 | ABB-TE7WWW6L2.5-.. |
| 3″ | 3.375 | 85.7 | ABB-TE7WWW6L3.0-.. |
| 4″ | 4.125 | 104.8 | ABB-TE7WWW6L4.0-.. |
| 6″ |
5.625 | 142.9 | ABB-TE7WWW6L6.0-.. |

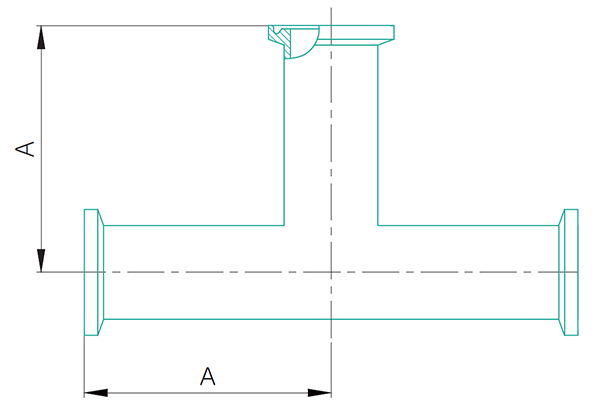

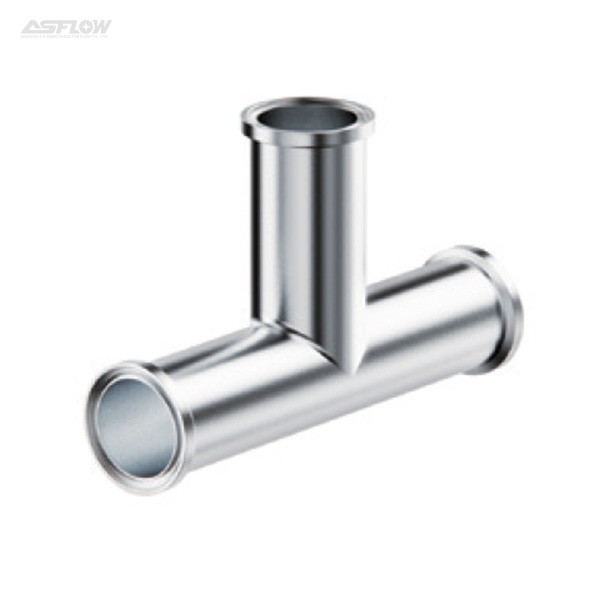

ABB-TEG7 – EQUAL TEE CLAMP THREE END
BPE TABLE # DT-4.1.2-4
| Nominal Size in. | Dimensions | Ordering Code | |
|---|---|---|---|
| A in. | A mm | ||
| 1/4″ | 2.250 | 57.2 |
ABB-TEG76L.25-.. |
| 3/8″ | 2.250 | 57.2 |
ABB-TEG76L.375-.. |
| 1/2″ | 2.250 | 57.2 |
ABB-TEG76L.5-.. |
| 3/4″ | 2.375 | 60.3 |
ABB-TEG76L.75-.. |
| 1″ | 2.625 | 66.7 | ABB-TEG76L1.0-.. |
| 1-1/2″ | 2.875 | 73.0 | ABB-TEG76L1.5-.. |
| 2″ | 3.375 | 85.7 | ABB-TEG76L2.0-.. |
| 2-1/2″ | 3.625 | 92.1 | ABB-TEG76L2.5-.. |
| 3″ | 3.875 | 98.4 | ABB-TEG76L3.0-… |
| 4″ | 4.750 | 120.7 | ABB-TEG76L4.0-… |
| 6″ |
7.125 | 181.0 |
ABB-TEG76L6.0-.. |
