Specification
- Product:
– Stainless Steel fittings comply with ASME BPE standards. - Sizes:
– Stainless Steel fittings are available in sizes .” – 6” O.D. tube size.
Materials
Fittings are fabricated in AISI 316L Stainless Steel with sulfur content of 0.005-0.017% achieving superior repeatability for automatic orbital welding process
Surface Finish
Reference: ASME BPE-2014, Part SF, Table SF-2.4-1.
|
Surface Finish Code |
BPE Surface Designation |
Inside Surface |
Outside Surface |
||
|---|---|---|---|---|---|
|
Ra Maximum |
Surface Condition |
Surface Condition |
|||
|
μ-in. |
μm |
||||
|
PL |
SF1 |
20 |
0.51 |
Mechanically Polished* |
Mechanically Polished |
|
PM |
SF4 |
15 |
0.38 |
Mechanically Polished* & Electro-polished |
Mechanically Polished |
*: Or any other finishing method that meets the Ra max.
ASFLOW EP Exceeds the ASME BPE Quality Requirements
- The table below shows how ASFLOW EP exceeds the ASME BPE quality requirements.
- Please refer to ASFLOW homepage “Bio Tubes”
|
Attribute |
ASME BPE Recommendation |
ASFLOW Electro-polishing |
|---|---|---|
|
EP layer Thickness |
15Å < |
20Å < |
|
Cr/Fe ratio |
1 < |
1.5 < |
Ordering Information
|
① |
Brand |
|---|---|
|
ABB |
ASFLOW BIO FITTING |
|
ABC |
ASFLOW BIO GASKET |
|
② |
Item |
|---|---|
|
TE7RWWW |
REDUCING TEE |
|
TEG7R |
REDUCING TEE CLAMP THREE END |
|
TE7RWWCS |
SHORT OUTLET REDUCING TEE CLAMP ONE END |
|
TEG7RS |
SHORT OUTLET REDUCING TEE CLAMP THREE END |
|
③ |
Material |
|---|---|
|
6L |
Stainless steel 316L |
|
S4 |
Stainless steel 304 |
|
④ |
Size |
|---|---|
|
04 |
1/4″ |
|
06 |
3/8″ |
|
08 |
1/2″ |
|
12 |
3/4″ |
|
16 |
1″ |
|
24 |
1-1/2″ |
|
32 |
2″ |
|
40 |
2-1/2″ |
|
48 |
3″ |
|
64 |
4″ |
|
96 |
6″ |
|
⑤ |
Surface Finish Code |
|---|---|
|
PL |
SF1 |
|
PM |
SF4 |
Dimension

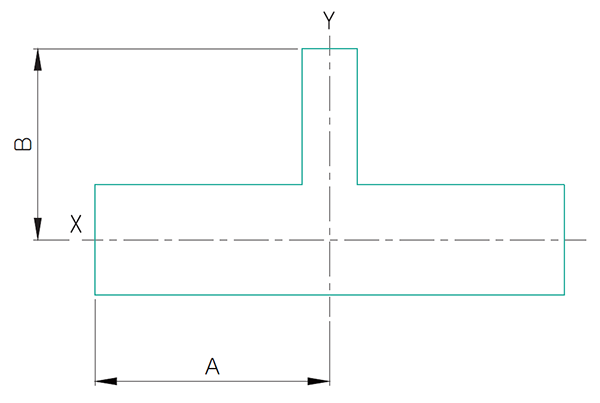

ABB-TE7RWWW –
REDUCING TEE
BPE TABLE # DT-4.1.2-6
|
Nominal Size in. |
Dimensions |
Ordering Code |
|||
|---|---|---|---|---|---|
|
X x Y |
A in. |
A ㎜ |
B in. |
B ㎜ |
|
|
3/8″ x 1/4″ |
1.750 |
44.5 |
1.750 |
44.5 |
ABB-TE7RWWW6L.375x.25-.. |
|
1/2″ x 1/4″ |
1.875 |
47.6 |
1.875 |
47.6 |
ABB-TE7RWWW6L.5x.25-.. |
|
1/2″ x 3/8″ |
1.875 |
47.6 |
1.875 |
47.6 |
ABB-TE7RWWW6L.5x.375-.. |
|
3/4″ x 1/4″ |
2.000 |
50.8 |
2.000 |
50.8 |
ABB-TE7RWWW6L.75x.25-.. |
|
3/4″ x 3/8″ |
2.000 |
50.8 |
2.000 |
50.8 |
ABB-TE7RWWW6L.75x.375-.. |
|
3/4″ x 1/2″ |
2.000 |
50.8 |
2.000 |
50.8 |
ABB-TE7RWWW6L.75x.5-.. |
|
1″ x 1/4″ |
2.125 |
54.0 |
2.125 |
54.0 |
ABB-TE7RWWW6L1.0x.25-.. |
|
1″ x 3/8″ |
2.125 |
54.0 |
2.125 |
54.0 |
ABB-TE7RWWW6L1.0x.375-.. |
|
1″ x 1/2″ |
2.125 |
54.0 |
2.125 |
54.0 |
ABB-TE7RWWW6L1.0x.5-.. |
|
1″ x 3/4″ |
2.125 |
54.0 |
2.125 |
54.0 |
ABB-TE7RWWW6L1.0x.75-.. |
|
1-1/2″ x 1/2″ |
2.375 |
60.3 |
2.375 |
60.3 |
ABB-TE7RWWW6L1.5x.5-.. |
|
1-1/2″ x 3/4″ |
2.375 |
60.3 |
2.375 |
60.3 |
ABB- TE7RWWW6L1.5x.75-.. |
|
1-1/2″ x 1″ |
2.375 |
60.3 |
2.375 |
60.3 |
ABB-TE7RWWW6L1.5×1.0-.. |
|
2″ x 1/2″ |
2.875 |
73.0 |
2.625 |
66.7 |
ABB-TE7RWWW6L2.0x.5-.. |
|
2″ x 3/4″ |
2.875 |
73.0 |
2.625 |
66.7 |
ABB-TE7RWWW6L2.0x.75-.. |
|
2″ x 1″ |
2.875 |
73.0 |
2.625 |
66.7 |
ABB-TE7RWWW6L2.0x1.0-.. |
|
2″ x 1-1/2″ |
2.875 |
73.0 |
2.625 |
66.7 |
ABB-TE7RWWW6L2.0x1.5-.. |
|
2-1/2″ x 1/2″ |
3.125 |
79.4 |
2.875 |
73.0 |
ABB-TE7RWWW6L2.5x.5-.. |
|
2-1/2″ x 3/4″ |
3.125 |
79.4 |
2.875 |
73.0 |
ABB-TE7RWWW6L2.5x.75-.. |
|
2-1/2″ x 1″ |
3.125 |
79.4 |
2.875 |
73.0 |
ABB-TE7RWWW6L2.5×1.0-.. |
|
2-1/2″ x 1-1/2″ |
3.125 |
79.4 |
2.875 |
73.0 |
ABB-TE7RWWW6L2.5×1.5-.. |
|
2-1/2″ x 2″ |
3.125 |
79.4 |
2.875 |
73.0 |
ABB-TE7RWWW6L2.5×2.0-.. |
|
3″ x 1/2″ |
3.375 |
85.7 |
3.125 |
79.4 |
ABB-TE7RWWW6L3.0x.5-.. |
|
3″ x 3/4″ |
3.375 |
85.7 |
3.125 |
79.4 |
ABB-TE7RWWW6L3.0x.75-.. |
|
3″ x 1″ |
3.375 |
85.7 |
3.125 |
79.4 |
ABB-TE7RWWW6L3.0x1.0-.. |
|
3″ x 1-1/2″ |
3.375 |
85.7 |
3.125 |
79.4 |
ABB-TE7RWWW6L3.0x1.5-.. |
|
3″ x 2″ |
3.375 |
85.7 |
3.125 |
79.4 |
ABB-TE7RWWW6L3.0x2.0-.. |
|
3″ x 2-1/2″ |
3.375 |
85.7 |
3.125 |
79.4 |
ABB-TE7RWWW6L3.0x2.5-.. |
|
4″ x 1/2″ |
4.125 |
104.8 |
3.625 |
92.1 |
ABB-TE7RWWW6L4.0x.5-.. |
|
4″ x 3/4″ |
4.125 |
104.8 |
3.625 |
92.1 |
ABB-TE7RWWW6L4.0x.75-.. |
|
4″ x 1″ |
4.125 |
104.8 |
3.625 |
92.1 |
ABB- TE7RWWW6L4.0x1.0-.. |
|
4″ x 1-1/2″ |
4.125 |
104.8 |
3.625 |
92.1 |
ABB-TE7RWWW6L4.0x1.5-.. |
|
4″ x 2″ |
4.125 |
104.8 |
3.875 |
98.4 |
ABB-TE7RWWW6L4.0x2.0-.. |
|
4″ x 2-1/2″ |
4.125 |
104.8 |
3.875 |
98.4 |
ABB-TE7RWWW6L4.0x2.5-.. |
|
4″ x 3″ |
4.125 |
104.8 |
3.875 |
98.4 |
ABB-TE7RWWW6L4.0x3.0-.. |
|
6″ x 3″ |
5.625 |
142.9 |
4.875 |
123.8 |
ABB-TE7RWWW6L6.0x3.0-.. |
|
6″ x 4″ |
5.625 |
142.9 |
5.125 |
130.2 |
ABB-TE7RWWW6L6.0x4.0-.. |

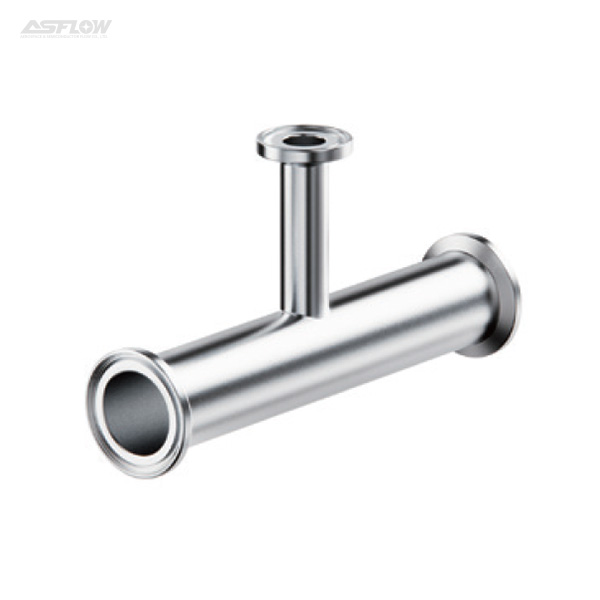

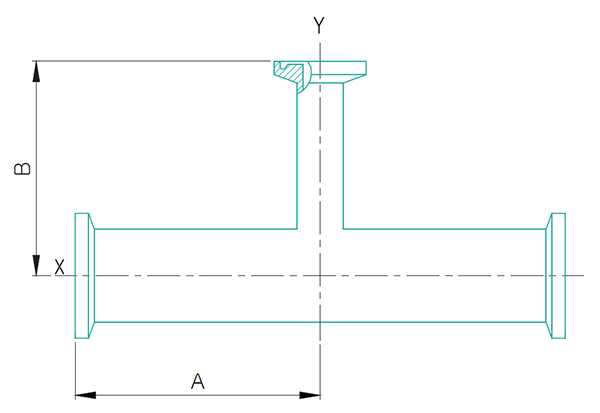

ABB-TEG7R –
REDUCING TEE
CLAMP THREE END
BPE TABLE # DT-4.1.2-6
|
Nominal Size in. |
Dimensions |
Ordering Code |
|||
|---|---|---|---|---|---|
|
X x Y |
A in. |
A ㎜ |
B in. |
B ㎜ |
|
|
3/8″ x 1/4″ |
2.250 |
57.2 |
2.250 |
57.2 |
ABB-TEG7R6L.375x.25-.. |
|
1/2″ x 1/4″ |
2.375 |
60.3 |
2.375 |
60.3 |
ABB-TEG7R6L.5x.25-.. |
|
1/2″ x 3/8″ |
2.375 |
60.3 |
2.375 |
60.3 |
ABB-TEG7R6L.5x.375-.. |
|
3/4″ x 1/4″ |
2.500 |
63.5 |
2.500 |
63.5 |
ABB-TEG7R6L.75x.25-.. |
|
3/4″ x 3/8″ |
2.500 |
63.5 |
2.500 |
63.5 |
ABB-TEG7R6L.75x.375-.. |
|
3/4″ x 1/2″ |
2.500 |
63.5 |
2.500 |
63.5 |
ABB-TEG7R6L.75x.5-.. |
|
1″ x 1/4″ |
2.625 |
66.7 |
2.625 |
66.7 |
ABB-TEG7R6L1.0x.25-.. |
|
1″ x 3/8″ |
2.625 |
66.7 |
2.625 |
66.7 |
ABB-TEG7R6L1.0x.375-.. |
|
1″ x 1/2″ |
2.625 |
66.7 |
2.625 |
66.7 |
ABB-TEG7R6L1.0X.5-.. |
|
1″ x 3/4″ |
2.625 |
66.7 |
2.625 |
66.7 |
ABB-TEG7R6L1.0x.75-.. |
|
1-1/2″ x 1/2″ |
2.875 |
73.0 |
2.875 |
73.0 |
ABB-TEG7R6L1.5X.5-.. |
|
1-1/2″ x 3/4″ |
2.875 |
73.0 |
2.875 |
73.0 |
ABB-TEG7R6L1.5x.75-.. |
|
1-1/2″ x 1″ |
2.875 |
73.0 |
2.875 |
73.0 |
ABB-TEG7R6L1.5X1.0-.. |
|
2″ x 1/2″ |
3.375 |
85.7 |
3.125 |
79.4 |
ABB-TEG7R6L2.0X.5-.. |
|
2″ x 3/4″ |
3.375 |
85.7 |
3.125 |
79.4 |
ABB-TEG7R6L2.0x.75-.. |
|
2″ x 1″ |
3.375 |
85.7 |
3.125 |
79.4 |
ABB-TEG7R6L2.0X1.0-.. |
|
2″ x 1-1/2″ |
3.375 |
85.7 |
3.125 |
79.4 |
ABB-TEG7R6L2.0X1.5-.. |
|
2-1/2″ x 1/2″ |
3.625 |
92.1 |
3.375 |
85.7 |
ABB-TEG7R6L2.5X.5-.. |
|
2-1/2″ x 3/4″ |
3.625 |
92.1 |
3.375 |
85.7 |
ABB-TEG7R6L2.5x.75-.. |
|
2-1/2″ x 1″ |
3.625 |
92.1 |
3.375 |
85.7 |
ABB-TEG7R6L2.5X1.0-.. |
|
2-1/2″ x 1-1/2″ |
3.625 |
92.1 |
3.375 |
85.7 |
ABB-TEG7R6L2.5X1.5-.. |
|
2-1/2″ x 2″ |
3.625 |
92.1 |
3.375 |
85.7 |
ABB-TEG7R6L2.5X2.0-.. |
|
3″ x 1/2″ |
3.875 |
98.4 |
3.625 |
92.1 |
ABB-TEG7R6L3.0X.5-.. |
|
3″ x 3/4″ |
3.875 |
98.4 |
3.625 |
92.1 |
ABB-TEG7R6L3.0x.75-.. |
|
3″ x 1″ |
3.875 |
98.4 |
3.625 |
92.1 |
ABB-TEG7R6L3.0X1.0-.. |
|
3″ x 1-1/2″ |
3.875 |
98.4 |
3.625 |
92.1 |
ABB-TEG7R6L3.0X1.5-.. |
|
3″ x 2″ |
3.875 |
98.4 |
3.625 |
92.1 |
ABB-TEG7R6L3.0X2.0-.. |
|
3″ x 2-1/2″ |
3.875 |
98.4 |
3.625 |
92.1 |
ABB-TEG7R6L3.0X2.5-.. |
|
4″ x 1/2″ |
4.750 |
120.7 |
4.125 |
104.8 |
ABB-TEG7R6L4.0X.5-.. |
|
4″ x 3/4″ |
4.750 |
120.7 |
4.125 |
104.8 |
ABB-TEG7R6L4.0x.75-.. |
|
4″ x 1″ |
4.750 |
120.7 |
4.125 |
104.8 |
ABB-TEG7R6L4.0X1.0-.. |
|
4″ x 1-1/2″ |
4.750 |
120.7 |
4.125 |
104.8 |
ABB-TEG7R6L4.0X1.5-.. |
|
4″ x 2″ |
4.750 |
120.7 |
4.125 |
104.8 |
ABB-TEG7R6L4.0X2.0-.. |
|
4″ x 2-1/2″ |
4.750 |
120.7 |
4.125 |
104.8 |
ABB-TEG7R6L4.0X2.5-.. |
|
4″ x 3″ |
4.750 |
120.7 |
4.125 |
104.8 |
ABB-TEG7R6L4.0X3.0-.. |
|
6″ x 3″ |
7.125 |
181.0 |
5.375 |
136.5 |
ABB-TEG7R6L6.0X3.0-.. |
|
6″ x 4″ |
7.125 |
181.0 |
5.750 |
146.1 |
ABB-TEG7R6L6.0X4.0-.. |

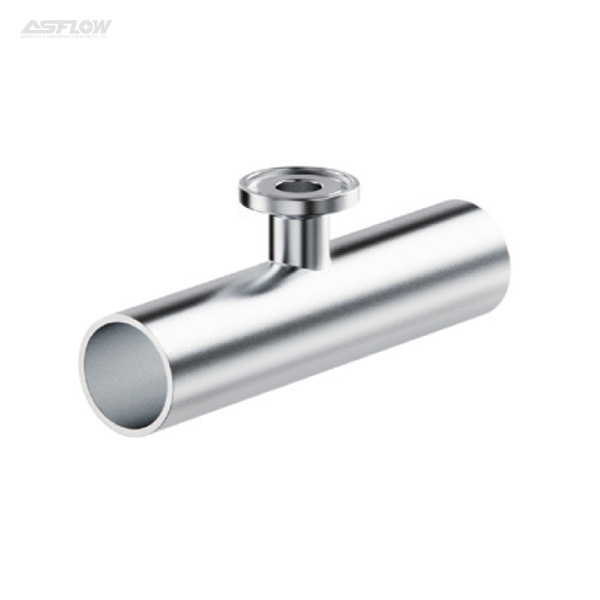

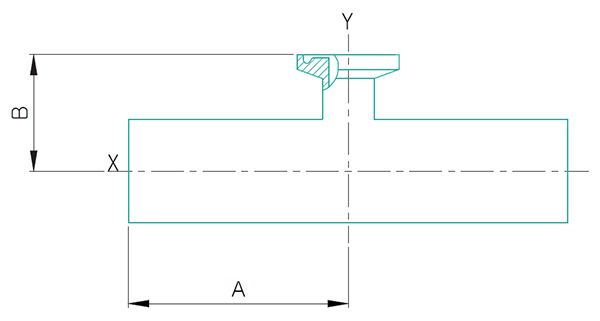

ABB-TE7RWWCS –
SHORT OUTLET REDUCING TEE
CLAMP ONE END
BPE TABLE # DT-4.1.2-7
|
Nominal Size in. |
Dimensions |
Ordering Code |
|||
|---|---|---|---|---|---|
|
X x Y |
A in. |
A ㎜ |
B in. |
B ㎜ |
|
|
3/8″ x 1/4″ |
1.750 |
44.5 |
1.000 |
25.4 |
ABB-TE7RWWCS6L.375x.25-.. |
|
1/2″ x 1/4″ |
1.875 |
47.6 |
1.000 |
25.4 |
ABB-TE7RWWCS6L.5x.25-.. |
|
1/2″ x 3/8″ |
1.875 |
47.6 |
1.000 |
25.4 |
ABB-TE7RWWCS6L.5x.375-.. |
|
3/4″ x 1/4″ |
2.000 |
50.8 |
1.000 |
25.4 |
ABB-TE7RWWCS6L.75x.25-.. |
|
3/4″ x 3/8″ |
2.000 |
50.8 |
1.000 |
25.4 |
ABB-TE7RWWCS6L.75x.375-.. |
|
3/4″ x 1/2″ |
2.000 |
50.8 |
1.000 |
25.4 |
ABB-TE7RWWCS6L.75x.5-.. |
|
1″ x 1/4″ |
2.125 |
54.0 |
1.125 |
28.6 |
ABB-TE7RWWCS6L1.0x.25-.. |
|
1″ x 3/8″ |
2.125 |
54.0 |
1.125 |
28.6 |
ABB-TE7RWWCS6L1.0x.375-.. |
|
1″ x 1/2″ |
2.125 |
54.0 |
1.125 |
28.6 |
ABB-TE7RWWCS6L1.0x.5-.. |
|
1″ x 3/4″ |
2.125 |
54.0 |
1.125 |
28.6 |
ABB-TE7RWWCS6L1.0x.75-.. |
|
1-1/2″ x 1/2″ |
2.375 |
60.3 |
1.375 |
34.9 |
ABB-TE7RWWCS6L1.5x.5-.. |
|
1-1/2″ x 3/4″ |
2.375 |
60.3 |
1.375 |
34.9 |
ABB-TE7RWWCS6L1.5x.75-.. |
|
1-1/2″ x 1″ |
2.375 |
60.3 |
1.375 |
34.9 |
ABB-TE7RWWCS6L1.5×1.0-.. |
|
2″ x 1/2″ |
2.875 |
73.0 |
1.625 |
41.3 |
ABB-TE7RWWCS6L2.0x.5-.. |
|
2″ x 3/4″ |
2.875 |
73.0 |
1.625 |
41.3 |
ABB-TE7RWWCS6L2.0x.75-.. |
|
2″ x 1″ |
2.875 |
73.0 |
1.625 |
41.3 |
ABB-TE7RWWCS6L2.0x1.0-.. |
|
2″ x 1-1/2″ |
2.875 |
73.0 |
1.625 |
41.3 |
ABB-TE7RWWCS6L2.0x1.5-.. |
|
2-1/2″ x 1/2″ |
3.125 |
79.4 |
1.875 |
47.6 |
ABB-TE7RWWCS6L2.5x.5-.. |
|
2-1/2″ x 3/4″ |
3.125 |
79.4 |
1.875 |
47.6 |
ABB-TE7RWWCS6L2.5x.75-.. |
|
2-1/2″ x 1″ |
3.125 |
79.4 |
1.875 |
47.6 |
ABB-TE7RWWCS6L2.5×1.0-.. |
|
2-1/2″ x 1-1/2″ |
3.125 |
79.4 |
1.875 |
47.6 |
ABB-TE7RWWCS6L2.5×1.5-.. |
|
2-1/2″ x 2″ |
3.125 |
79.4 |
1.875 |
47.6 |
ABB-TE7RWWCS6L2.5×2.0-.. |
|
3″ x 1/2″ |
3.375 |
85.7 |
2.125 |
54.0 |
ABB-TE7RWWCS6L3.0x.5-.. |
|
3″ x 3/4″ |
3.375 |
85.7 |
2.125 |
54.0 |
ABB-TE7RWWCS6L3.0x.75-.. |
|
3″ x 1″ |
3.375 |
85.7 |
2.125 |
54.0 |
ABB-TE7RWWCS6L3.0x1.0-.. |
|
3″ x 1-1/2″ |
3.375 |
85.7 |
2.125 |
54.0 |
ABB-TE7RWWCS6L3.0x1.5-.. |
|
3″ x 2″ |
3.375 |
85.7 |
2.125 |
54.0 |
ABB-TE7RWWCS6L3.0x2.0-.. |
|
3″ x 2-1/2″ |
3.375 |
85.7 |
2.125 |
54.0 |
ABB-TE7RWWCS6L3.0x2.5-.. |
|
4″ x 1/2″ |
4.125 |
104.8 |
2.625 |
66.7 |
ABB-TE7RWWCS6L4.0x.5-.. |
|
4″ x 3/4″ |
4.125 |
104.8 |
2.625 |
66.7 |
ABB-TE7RWWCS6L4.0x.75-.. |
|
4″ x 1″ |
4.125 |
104.8 |
2.625 |
66.7 |
ABB-TE7RWWCS6L4.0x1.0-.. |
|
4″ x 1-1/2″ |
4.125 |
104.8 |
2.625 |
66.7 |
ABB-TE7RWWCS6L4.0x1.5-.. |
|
4″ x 2″ |
4.125 |
104.8 |
2.625 |
66.7 |
ABB-TE7RWWCS6L4.0x2.0-.. |
|
4″ x 2-1/2″ |
4.125 |
104.8 |
2.625 |
66.7 |
ABB-TE7RWWCS6L4.0x2.5-.. |
|
4″ x 3″ |
4.125 |
104.8 |
2.625 |
66.7 |
ABB-TE7RWWCS6L4.0x3.0-.. |
|
6″ x 1/2″ |
5.625 |
142.9 |
3.625 |
92.1 |
ABB-TE7RWWCS6L6.0x.5-.. |
|
6″ x 3/4″ |
5.625 |
142.9 |
3.625 |
92.1 |
ABB-TE7RWWCS6L6.0x.75-.. |
|
6″ x 1″ |
5.625 |
142.9 |
3.625 |
92.1 |
ABB-TE7RWWCS6L6.0x1.0-.. |
|
6″ x 1-1/2″ |
5.625 |
142.9 |
3.625 |
92.1 |
ABB-TE7RWWCS6L6.0x1.5-.. |
|
6″ x 2″ |
5.625 |
142.9 |
3.625 |
92.1 |
ABB-TE7RWWCS6L6.0x2.0-.. |
|
6″ x 2-1/2″ |
5.625 |
142.9 |
3.625 |
92.1 |
ABB-TE7RWWCS6L6.0x2.5-.. |
|
6″ x 3″ |
5.625 |
142.9 |
3.625 |
92.1 |
ABB-TE7RWWCS6L6.0x3.0-.. |
|
6″ x 4″ |
5.625 |
142.9 |
3.750 |
95.3 |
ABB-TE7RWWCS6L6.0x4.0-.. |

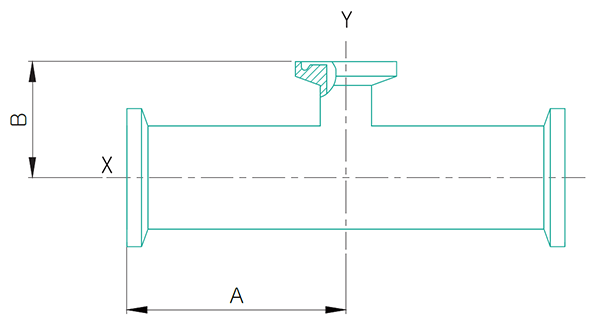

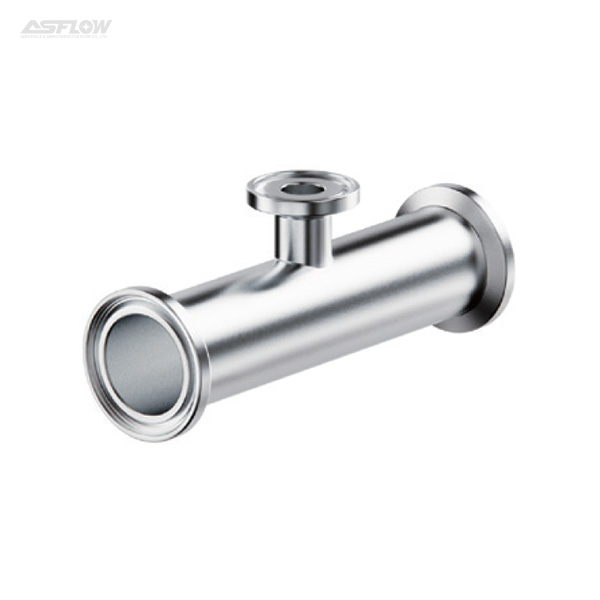

ABB-TEG7RS –
SHORT OUTLET REDUCING TEE
CLAMP THREE END
BPE TABLE # DT-4.1.2-9
|
Nominal Size in. |
Dimensions |
Ordering Code |
|||
|---|---|---|---|---|---|
|
X x Y |
A in. |
A ㎜ |
B in. |
B ㎜ |
|
|
3/8″ x 1/4″ |
2.250 |
57.2 |
1.000 |
25.4 |
ABB-TEG7RS6L.375x.25-.. |
|
1/2″ x 1/4″ |
2.375 |
60.3 |
1.000 |
25.4 |
ABB-TEG7RS6L.5x.25-.. |
|
1/2″ x 3/8″ |
2.375 |
60.3 |
1.000 |
25.4 |
ABB-TEG7RS6L.5x.375-.. |
|
3/4″ x 1/4″ |
2.500 |
63.5 |
1.000 |
25.4 |
ABB-TEG7RS6L.75x.25-.. |
|
3/4″ x 3/8″ |
2.500 |
63.5 |
1.000 |
25.4 |
ABB-TEG7RS6L.75x.375-.. |
|
3/4″ x 1/2″ |
2.500 |
63.5 |
1.000 |
25.4 |
ABB-TEG7RS6L.75x.5-.. |
|
1″ x 1/4″ |
2.625 |
66.7 |
1.125 |
28.6 |
ABB-TEG7RS6L1.0x.25-.. |
|
1″ x 3/8″ |
2.625 |
66.7 |
1.125 |
28.6 |
ABB-TEG7RS6L1.0x.375-.. |
|
1″ x 1/2″ |
2.625 |
66.7 |
1.125 |
28.6 |
ABB-TEG7RS6L1.0x.5-.. |
|
1″ x 3/4″ |
2.625 |
66.7 |
1.125 |
28.6 |
ABB-TEG7RS6L1.0x.75-.. |
|
1-1/2″ x 1/2″ |
2.875 |
73.0 |
1.375 |
34.9 |
ABB-TEG7RS6L1.5x.5-.. |
|
1-1/2″ x 3/4″ |
2.875 |
73.0 |
1.375 |
34.9 |
ABB-TEG7RS6L1.5x.75-.. |
|
1-1/2″ x 1″ |
2.875 |
73.0 |
1.375 |
34.9 |
ABB-TEG7RS6L1.5x.1.0-.. |
|
2″ x 1/2″ |
3.375 |
85.7 |
1.625 |
41.3 |
ABB-TEG7RS6L2.0x.5-.. |
|
2″ x 3/4″ |
3.375 |
85.7 |
1.625 |
41.3 |
ABB-TEG7RS6L2.0x.75-.. |
|
2″ x 1″ |
3.375 |
85.7 |
1.625 |
41.3 |
ABB-TEG7RS6L2.0x1.0-.. |
|
2″ x 1-1/2″ |
3.375 |
85.7 |
1.625 |
41.3 |
ABB-TEG7RS6L2.0x1.5-.. |
|
2-1/2″ x 1/2″ |
3.625 |
92.1 |
1.875 |
47.6 |
ABB-TEG7RS6L2.5x.5-.. |
|
2-1/2″ x 3/4″ |
3.625 |
92.1 |
1.875 |
47.6 |
ABB-TEG7RS6L2.5x.75-.. |
|
2-1/2″ x 1″ |
3.625 |
92.1 |
1.875 |
47.6 |
ABB-TEG7RS6L2.5×1.0-.. |
|
2-1/2″ x 1-1/2″ |
3.625 |
92.1 |
1.875 |
47.6 |
ABB-TEG7RS6L2.5×1.5-.. |
|
2-1/2″ x 2″ |
3.625 |
92.1 |
1.875 |
47.6 |
ABB-TEG7RS6L2.5×2.0-.. |
|
3″ x 1/2″ |
3.875 |
98.4 |
2.125 |
54.0 |
ABB-TEG7RS6L3.0x.5-.. |
|
3″ x 3/4″ |
3.875 |
98.4 |
2.125 |
54.0 |
ABB-TEG7RS6L3.0x.75-.. |
|
3″ x 1″ |
3.875 |
98.4 |
2.125 |
54.0 |
ABB-TEG7RS6L3.0x1.0-.. |
|
3″ x 1-1/2″ |
3.875 |
98.4 |
2.125 |
54.0 |
ABB-TEG7RS6L3.0x1.5-.. |
|
3″ x 2″ |
3.875 |
98.4 |
2.125 |
54.0 |
ABB-TEG7RS6L3.0x2.0-.. |
|
3″ x 2-1/2″ |
3.875 |
98.4 |
2.125 |
54.0 |
ABB-TEG7RS6L3.0x2.5-.. |
|
4″ x 1/2″ |
4.750 |
120.7 |
2.625 |
66.7 |
ABB-TEG7RS6L4.0x.5-.. |
|
4″ x 3/4″ |
4.750 |
120.7 |
2.625 |
66.7 |
ABB-TEG7RS6L4.0x.75-.. |
|
4″ x 1″ |
4.750 |
120.7 |
2.625 |
66.7 |
ABB-TEG7RS6L4.0x1.0-.. |
|
4″ x 1-1/2″ |
4.750 |
120.7 |
2.625 |
66.7 |
ABB-TEG7RS6L4.0x1.5-.. |
|
4″ x 2″ |
4.750 |
120.7 |
2.625 |
66.7 |
ABB-TEG7RS6L4.0x2.0-.. |
|
4″ x 2-1/2″ |
4.750 |
120.7 |
2.625 |
66.7 |
ABB-TEG7RS6L4.0x2.5-.. |
|
4″ x 3″ |
4.750 |
120.7 |
2.625 |
66.7 |
ABB-TEG7RS6L4.0x3.0-.. |
|
6″ x 1/2″ |
7.125 |
181.0 |
3.625 |
92.1 |
ABB-TEG7RS6L6.0x.5-.. |
|
6″ x 3/4″ |
7.125 |
181.0 |
3.625 |
92.1 |
ABB-TEG7RS6L6.0x.75-.. |
|
6″ x 1″ |
7.125 |
181.0 |
3.625 |
92.1 |
ABB-TEG7RS6L6.0x1.0-.. |
|
6″ x 1-1/2″ |
7.125 |
181.0 |
3.625 |
92.1 |
ABB-TEG7RS6L6.0x1.5-.. |
|
6″ x 2″ |
7.125 |
181.0 |
3.625 |
92.1 |
ABB-TEG7RS6L6.0x2.0-.. |
|
6″ x 2-1/2″ |
7.125 |
181.0 |
3.625 |
92.1 |
ABB-TEG7RS6L6.0x2.5-.. |
|
6″ x 3″ |
7.125 |
181.0 |
3.625 |
92.1 |
ABB-TEG7RS6L6.0x3.0-.. |
|
6″ x 4″ |
7.125 |
181.0 |
3.750 |
95.3 |
ABB-TEG7RS6L6.0x4.0-.. |
