Specification
- Product:
– Stainless Steel fittings comply with ASME BPE standards. - Sizes:
– Stainless Steel fittings are available in sizes .” – 6” O.D. tube size.
Materials
Fittings are fabricated in AISI 316L Stainless Steel with sulfur content of 0.005-0.017% achieving superior repeatability for automatic orbital welding process
Surface Finish
Reference: ASME BPE-2014, Part SF, Table SF-2.4-1.
|
Surface Finish Code |
BPE Surface Designation |
Inside Surface |
Outside Surface |
||
|---|---|---|---|---|---|
|
Ra Maximum |
Surface Condition |
Surface Condition |
|||
|
μ-in. |
μm |
||||
|
PL |
SF1 |
20 |
0.51 |
Mechanically Polished* |
Mechanically Polished |
|
PM |
SF4 |
15 |
0.38 |
Mechanically Polished* & Electro-polished |
Mechanically Polished |
*: Or any other finishing method that meets the Ra max.
ASFLOW EP Exceeds the ASME BPE Quality Requirements
- The table below shows how ASFLOW EP exceeds the ASME BPE quality requirements.
- Please refer to ASFLOW homepage “Bio Tubes”
|
Attribute |
ASME BPE Recommendation |
ASFLOW Electro-polishing |
|---|---|---|
|
EP layer Thickness |
15Å < |
20Å < |
|
Cr/Fe ratio |
1 < |
1.5 < |
Ordering Information
|
① |
Brand |
|---|---|
|
ABB |
ASFLOW BIO FITTING |
|
ABC |
ASFLOW BIO GASKET |
|
② |
Item |
|---|---|
|
TEG14AM7 |
CLAMP FERRULE LONG |
|
TEG14BM7 |
CLAMP FERRULE MEDIUM |
|
TEG2CS |
CLAMP FERRULE SHORT |
|
③ |
Material |
|---|---|
|
6L |
Stainless steel 316L |
|
S4 |
Stainless steel 304 |
|
④ |
Size |
|---|---|
|
04 |
1/4″ |
|
06 |
3/8″ |
|
08 |
1/2″ |
|
12 |
3/4″ |
|
16 |
1″ |
|
24 |
1-1/2″ |
|
32 |
2″ |
|
40 |
2-1/2″ |
|
48 |
3″ |
|
64 |
4″ |
|
96 |
6″ |
|
⑤ |
Surface Finish Code |
|---|---|
|
PL |
SF1 |
|
PM |
SF4 |
Dimension

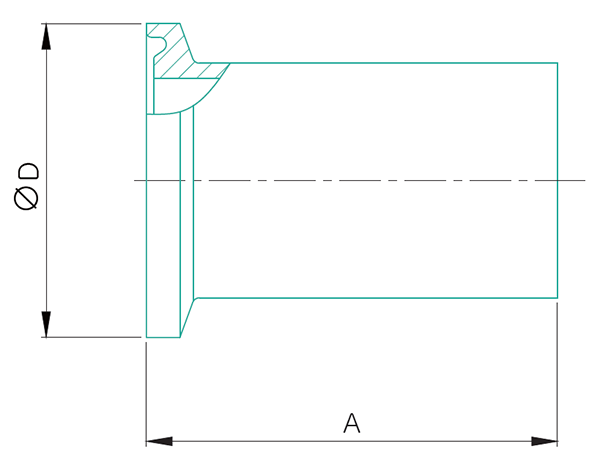

ABB-TEG14AM7 –
CLAMP FERRULE LONG
BPE TABLE # DT-4.1.4-1(A)
|
Nominal Size in. |
Dimensions |
Ordering Code |
||||
|---|---|---|---|---|---|---|
|
Type |
A in. |
A ㎜ |
D in. |
D ㎜ |
||
|
1/4″ |
A |
1.750 |
44.5 |
0.984 |
24.9 |
ABB-TEG14AM76L.25-.. |
|
3/8″ |
A |
1.750 |
44.5 |
0.984 |
24.9 |
ABB-TEG14AM76L.375-.. |
|
1/2″ |
A |
1.750 |
44.5 |
0.984 |
24.9 |
ABB-TEG14AM76L.5-.. |
|
3/4″ |
A |
1.750 |
44.5 |
0.984 |
24.9 |
ABB-TEG14AM76L.75-.. |
|
1″ |
A |
1.750 |
44.5 |
1.339 |
34.0 |
ABB-TEG14AM76L1.0-A.. |
|
1″ |
B |
1.750 |
44.5 |
1.984 |
50.3 |
ABB-TEG14AM76L1.0-.. |
|
1-1/2″ |
B |
1.750 |
44.5 |
1.984 |
50.3 |
ABB-TEG14AM76L1.5-.. |
|
2″ |
B |
2.250 |
57.2 |
2.516 |
63.9 |
ABB-TEG14AM76L2.0-.. |
|
2-1/2″ |
B |
2.250 |
57.2 |
3.047 |
77.3 |
ABB-TEG14AM76L2.5-.. |
|
3″ |
B |
2.250 |
57.2 |
3.579 |
90.9 |
ABB-TEG14AM76L3.0-.. |
|
4″ |
B |
2.250 |
57.2 |
4.682 |
118.9 |
ABB-TEG14AM76L4.0-.. |
|
6″ |
B |
3.000 |
76.2 |
6.570 |
166.8 |
ABB-TEG14AM76L6.0- |
ABB-TEG14BM7 –
CLAMP FERRULE MEDIUM
BPE TABLE # DT-4.1.4-1(B)
|
Nominal Size in. |
Dimensions |
Ordering Code |
||||
|---|---|---|---|---|---|---|
|
Type |
A in. |
A ㎜ |
D in. |
D ㎜ |
||
|
1/4″ |
A |
1.130 |
28.7 |
0.984 |
24.9 |
ABB-TEG14BM76L.25-.. |
|
3/8″ |
A |
1.130 |
28.7 |
0.984 |
24.9 |
ABB-TEG14BM76L.375-.. |
|
1/2″ |
A |
1.130 |
28.7 |
0.984 |
24.9 |
ABB-TEG14BM76L.5-.. |
|
3/4″ |
A |
1.130 |
28.7 |
0.984 |
24.9 |
ABB-TEG14BM76L.75-.. |
|
1″ |
A |
1.130 |
28.7 |
1.339 |
34.0 |
ABB-TEG14BM76L1.0-A.. |
|
1″ |
B |
1.130 |
28.7 |
1.984 |
50.3 |
ABB-TEG14BM76L1.0-.. |
|
1-1/2″ |
B |
1.130 |
28.7 |
1.984 |
50.3 |
ABB-TEG14BM76L1.5-.. |
|
2″ |
B |
1.130 |
28.7 |
2.516 |
63.9 |
ABB-TEG14BM76L2.0-.. |
|
2-1/2″ |
B |
1.130 |
28.7 |
3.047 |
77.3 |
ABB-TEG14BM76L2.5-.. |
|
3″ |
B |
1.130 |
28.7 |
3.579 |
90.9 |
ABB-TEG14BM76L3.0-.. |
|
4″ |
B |
1.130 |
28.7 |
4.682 |
118.9 |
ABB-TEG14BM76L4.0-.. |
|
6″ |
B |
1.500 |
38.1 |
6.570 |
166.8 |
ABB-TEG14BM76L6.0-.. |

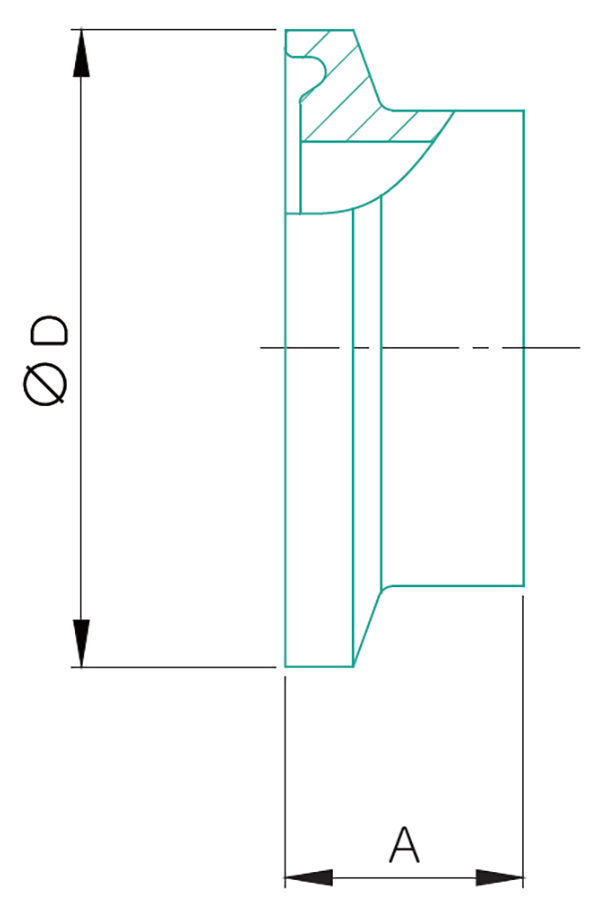

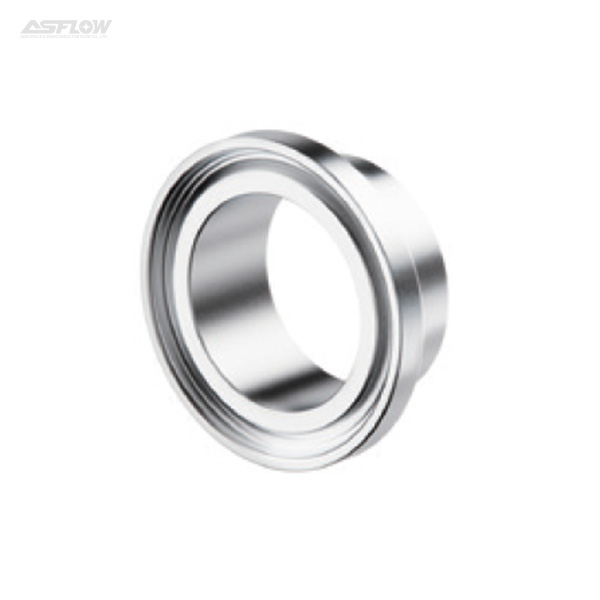

ABB-TEG2CS –
CLAMP FERRULE SHORT
BPE TABLE # DT-4.1.4-1(C)
|
Nominal Size in. |
Dimensions |
Ordering Code |
||||
|---|---|---|---|---|---|---|
|
Type |
A in. |
A ㎜ |
D in. |
D ㎜ |
||
|
1/4″ |
A |
0.500 |
12.7 |
0.984 |
24.9 |
ABB-TEG2CS6L.25-.. |
|
3/8″ |
A |
0.500 |
12.7 |
0.984 |
24.9 |
ABB-TEG2CS6L.375-.. |
|
1/2″ |
A |
0.500 |
12.7 |
0.984 |
24.9 |
ABB-TEG2CS6L.5-.. |
|
3/4″ |
A |
0.500 |
12.7 |
0.984 |
24.9 |
ABB-TEG2CS6L.75-.. |
|
1″ |
A |
0.500 |
12.7 |
1.339 |
34.0 |
ABB-TEG2CS6L1.0-A.. |
|
1″ |
B |
0.500 |
12.7 |
1.984 |
50.3 |
ABB-TEG2CS6L1.0-.. |
|
1-1/2″ |
B |
0.500 |
12.7 |
1.984 |
50.3 |
ABB-TEG2CS6L1.5-.. |
|
2″ |
B |
0.500 |
12.7 |
2.516 |
63.9 |
ABB-TEG2CS6L2.0-.. |
|
2-1/2″ |
B |
0.500 |
12.7 |
3.047 |
77.3 |
ABB-TEG2CS6L2.5-.. |
|
3″ 4″ 6″ |
B B B |
0.500 0.625 0.750 |
12.7 15.9 19.1 |
3.579 4.682 6.570 |
90.9 118.9 166.8 |
ABB-TEG2CS6L3.0-.. ABB-TEG2CS6L4.0-.. ABB-TEG2CS6L6.0-.. |
