Specification
- Product:
– Stainless Steel fittings comply with ASME BPE standards. - Sizes:
– Stainless Steel fittings are available in sizes .” – 6” O.D. tube size.
Materials
Fittings are fabricated in AISI 316L Stainless Steel with sulfur content of 0.005-0.017% achieving superior repeatability for automatic orbital welding process
Surface Finish
Reference: ASME BPE-2014, Part SF, Table SF-2.4-1.
|
Surface Finish Code |
BPE Surface Designation |
Inside Surface |
Outside Surface |
||
|---|---|---|---|---|---|
|
Ra Maximum |
Surface Condition |
Surface Condition |
|||
|
μ-in. |
μm |
||||
|
PL |
SF1 |
20 |
0.51 |
Mechanically Polished* |
Mechanically Polished |
|
PM |
SF4 |
15 |
0.38 |
Mechanically Polished* & Electro-polished |
Mechanically Polished |
*: Or any other finishing method that meets the Ra max.
ASFLOW EP Exceeds the ASME BPE Quality Requirements
- The table below shows how ASFLOW EP exceeds the ASME BPE quality requirements.
- Please refer to ASFLOW homepage “Bio Tubes”
|
Attribute |
ASME BPE Recommendation |
ASFLOW Electro-polishing |
|---|---|---|
|
EP layer Thickness |
15Å < |
20Å < |
|
Cr/Fe ratio |
1 < |
1.5 < |
Ordering Information
|
① |
Brand |
|---|---|
|
ABB |
ASFLOW BIO FITTING |
|
ABC |
ASFLOW BIO GASKET |
|
② |
Item |
|---|---|
|
TE31SWW |
CONCENTRIC REDUCER |
|
TE31SCW |
CONCENTRIC REDUCER CLAMP ONE END |
|
TEG31SCC |
CONCENTRIC REDUCER CLAMP TWO END |
|
③ |
Material |
|---|---|
|
6L |
Stainless steel 316L |
|
S4 |
Stainless steel 304 |
|
④ |
Size |
|---|---|
|
04 |
1/4″ |
|
06 |
3/8″ |
|
08 |
1/2″ |
|
12 |
3/4″ |
|
16 |
1″ |
|
24 |
1-1/2″ |
|
32 |
2″ |
|
40 |
2-1/2″ |
|
48 |
3″ |
|
64 |
4″ |
|
96 |
6″ |
|
⑤ |
Surface Finish Code |
|---|---|
|
PL |
SF1 |
|
PM |
SF4 |
Dimension

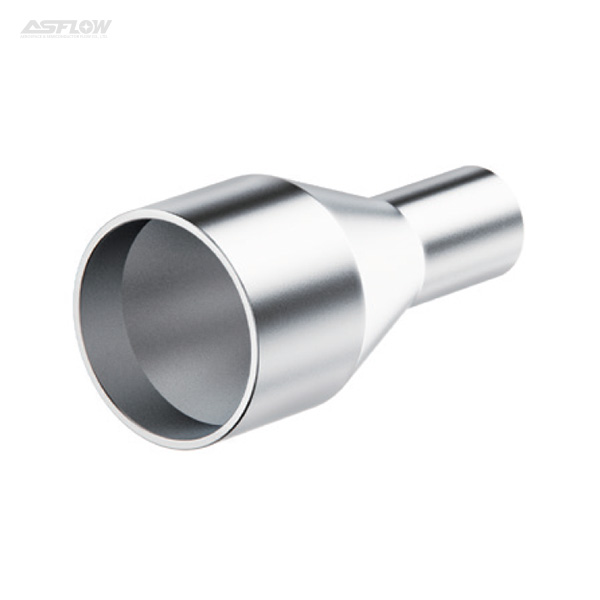

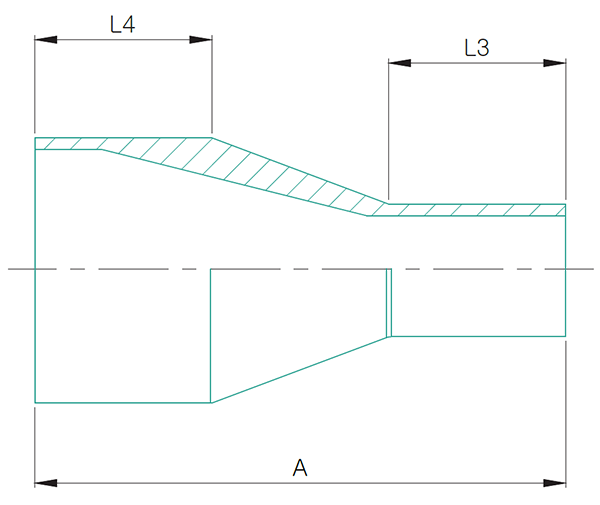

ABB-TE31SWW –
CONCENTRIC REDUCER
BPE TABLE # DT-4.1.3-1
|
Nominal Size in. |
Dimensions |
Ordering Code |
|||||
|---|---|---|---|---|---|---|---|
|
Overall Length, A, in |
Overall Length, A, ㎜ |
Minimum O.D. Tangent, Small End, L3, in. |
Minimum O.D. Tangent, Small End, L3, ㎜ |
Minimum O.D. Tangent, Large End, L4, in |
Minimum O.D. Tangent, Large End, L4, ㎜ |
||
|
3/8″ x 1/4″ |
1.625 |
41.275 |
0.750 |
19.05 |
0.750 |
19.05 |
ABB-TE31SWW6L.375x.25-.. |
|
1/2″ x 1/4″ |
1.875 |
47.625 |
0.750 |
19.05 |
1.000 |
25.40 |
ABB-TE31SWW6L.5x.25-.. |
|
1/2″ x 3/8″ |
1.875 |
47.625 |
0.750 |
19.05 |
1.000 |
25.40 |
ABB-TE31SWW6L.5x.375-.. |
|
3/4″ x 3/8″ |
2.000 |
50.800 |
0.750 |
19.05 |
1.000 |
25.40 |
ABB-TE31SWW6L.75x.375-.. |
|
3/4″ x 1/2″ |
2.125 |
53.975 |
1.000 |
25.40 |
1.000 |
25.40 |
ABB-TE31SWW6L.75x.5-.. |
|
1″ x 1/2″ |
2.500 |
63.500 |
1.000 |
25.40 |
1.000 |
25.40 |
ABB-TE31SWW6L1.0x.5-.. |
|
1″ x 3/4″ |
2.125 |
53.975 |
1.000 |
25.40 |
1.000 |
25.40 |
ABB-TE31SWW6L1.0x.75-.. |
|
1-1/2″ x 3/4″ |
3.000 |
76.200 |
1.000 |
25.40 |
1.000 |
25.40 |
ABB-TE31SWW6L1.5x.75-.. |
|
1-1/2″ x 1″ |
2.500 |
63.500 |
1.000 |
25.40 |
1.000 |
25.40 |
ABB-TE31SWW6L1.5×1.0-.. |
|
2″ x 1″ |
3.375 |
85.725 |
1.000 |
25.40 |
1.000 |
25.40 |
ABB-TE31SWW6L2.0x1.0-.. |
|
2″ x 1-1/2″ |
2.500 |
63.500 |
1.000 |
25.40 |
1.000 |
25.40 |
ABB-TE31SWW6L2.0x1.5-.. |
|
2-1/2″ x 1-1/2″ |
3.375 |
85.725 |
1.000 |
25.40 |
1.000 |
25.40 |
ABB-TE31SWW6L2.5×1.5-.. |
|
2-1/2″ x 2″ |
2.500 |
63.500 |
1.000 |
25.40 |
1.000 |
25.40 |
ABB-TE31SWW6L2.5×2.0-.. |
|
3″ x 1-1/2″ |
4.250 |
107.950 |
1.000 |
25.40 |
1.500 |
38.10 |
ABB-TE31SWW6L3.0x1.5-.. |
|
3″ x 2″ |
3.375 |
85.725 |
1.000 |
25.40 |
1.500 |
38.10 |
ABB-TE31SWW6L3.0x2.0-.. |
|
3″ x 2-1/2″ |
2.625 |
66.675 |
1.000 |
25.40 |
1.500 |
38.10 |
ABB-TE31SWW6L3.0x2.5-.. |
|
4″ x 2″ |
5.125 |
130.175 |
1.000 |
25.40 |
1.500 |
38.10 |
ABB-TE31SWW6L4.0x2.0-.. |
|
4″ x 2-1/2″ |
4.250 |
107.950 |
1.000 |
25.40 |
1.500 |
38.10 |
ABB-TE31SWW6L4.0x2.5-.. |
|
4″ x 3″ |
3.875 |
98.425 |
1.500 |
38.10 |
1.500 |
38.10 |
ABB-TE31SWW6L4.0x3.0-.. |
|
6″ x 3″ |
7.250 |
184.150 |
1.500 |
38.10 |
2.000 |
50.80 |
ABB-TE31SWW6L6.0x3.0-.. |
|
6″ x 4″ |
5.625 |
142.875 |
1.500 |
38.10 |
2.000 |
50.80 |
ABB-TE31SWW6L6.0x4.0-.. |

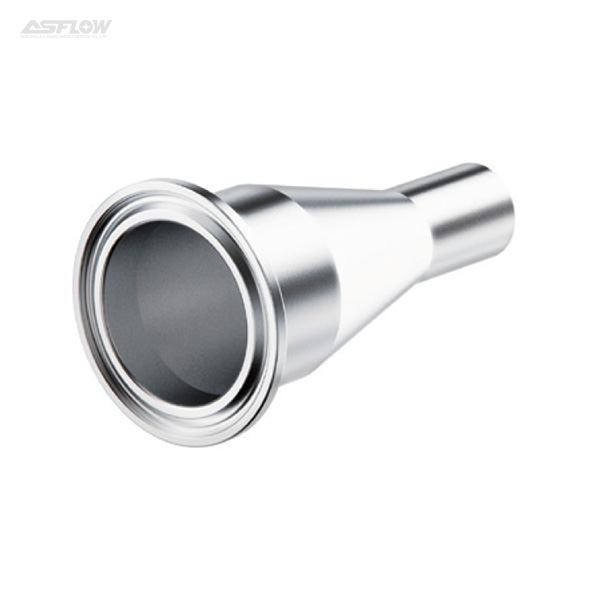

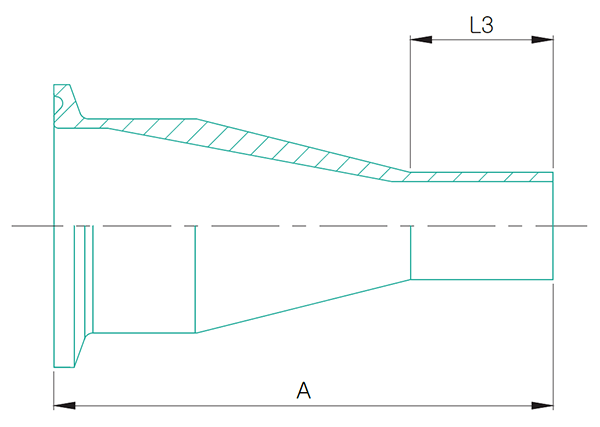

ABB-TE31SCW –
CONCENTRIC REDUCER
CLAMP ONE END
BPE TABLE # DT-4.1.3-2
|
Nominal Size in. |
Dimensions |
Ordering Code |
|||
|---|---|---|---|---|---|
|
Overall Length, A, in |
Overall Length, A, ㎜ |
Minimum O.D. Tangent, Small End, L3, in. |
Minimum O.D. Tangent, Small End, L3, ㎜ |
||
|
3/8″ x 1/4″ |
2.125 |
53.975 |
0.750 |
19.05 |
ABB-TE31SCW6L.375x.25-.. |
|
1/2″ x 1/4″ |
2.375 |
60.325 |
0.750 |
19.05 |
ABB-TE31SCW6L.5x.25-.. |
|
1/2″ x 3/8″ |
3.375 |
60.325 |
0.750 |
19.05 |
ABB-TE31SCW6L.5x.375-.. |
|
3/4″ x 3/8″ |
2.500 |
63.500 |
0.750 |
19.05 |
ABB-TE31SCW6L.75x.375-.. |
|
3/4″ x 1/2″ |
2.625 |
66.675 |
1.000 |
25.40 |
ABB-TE31SCW6L.75x.5-.. |
|
1″ x 1/2″ |
3.000 |
76.200 |
1.000 |
25.40 |
ABB-TE31SCW6L1.0x.5-.. |
|
1″ x 3/4″ |
2.625 |
66.675 |
1.000 |
25.40 |
ABB-TE31SCW6L1.0x.75-.. |
|
1-1/2″ x 3/4″ |
3.500 |
88.900 |
1.000 |
25.40 |
ABB-TE31SCW6L1.5x.75-.. |
|
1-1/2″ x 1″ |
3.000 |
76.200 |
1.000 |
25.40 |
ABB-TE31SCW6L1.5×1.0-.. |
|
2″ x 1″ |
3.875 |
98.425 |
1.000 |
25.40 |
ABB-TE31SCW6L2.0x1.0-.. |
|
2″ x 1-1/2″ |
3.000 |
76.200 |
1.000 |
25.40 |
ABB-TE31SCW6L2.0x1.5-.. |
|
2-1/2″ x 1-1/2″ |
3.875 |
98.425 |
1.000 |
25.40 |
ABB-TE31SCW6L2.5×1.5-.. |
|
2-1/2″ x 2″ |
3.000 |
76.200 |
1.000 |
25.40 |
ABB-TE31SCW6L2.5×2.0-.. |
|
3″ x 1-1/2″ |
4.750 |
120.650 |
1.000 |
25.40 |
ABB-TE31SCW6L3.0x1.5-.. |
|
3″ x 2″ |
3.875 |
98.425 |
1.000 |
25.40 |
ABB-TE31SCW6L3.0x2.0-.. |
|
3″ x 2-1/2″ |
3.125 |
79.375 |
1.000 |
25.40 |
ABB-TE31SCW6L3.0x2.5-.. |
|
4″ x 2″ |
5.750 |
146.050 |
1.000 |
25.40 |
ABB-TE31SCW6L4.0x2.0-.. |
|
4″ x 2-1/2″ |
4.875 |
123.825 |
1.000 |
25.40 |
ABB-TE31SCW6L4.0x2.5-.. |
|
4″ x 3″ |
4.500 |
1114.300 |
1.500 |
38.10 |
ABB-TE31SCW6L4.0x3.0-.. |
|
6″ x 3″ |
8.000 |
203.200 |
1.500 |
38.10 |
ABB-TE31SCW6L6.0x3.0-.. |
|
6″ x 4″ |
6.375 |
161.925 |
1.500 |
38.10 |
ABB-TE31SCW6L6.0x4.0-. |

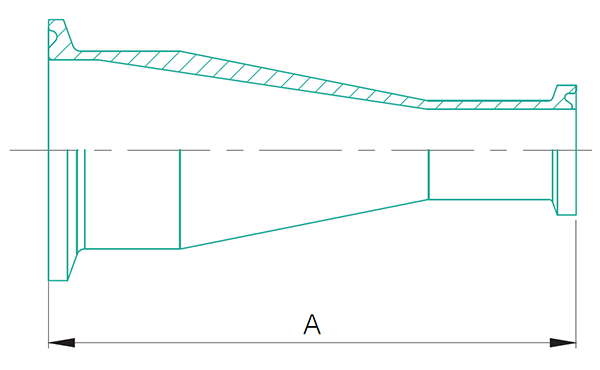

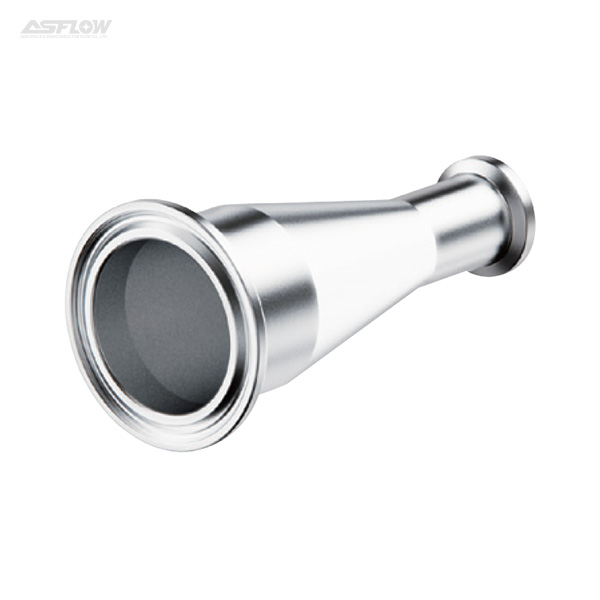

ABB-TEG31SCC –
CONCENTRIC REDUCER
CLAMP TWO END
BPE TABLE # DT-4.1.3-3
|
Nominal Size in. |
Dimensions |
Ordering Code |
|
|---|---|---|---|
|
Overall Length, A, in |
Overall Length, A, ㎜ |
||
|
3/8″ x 1/4″ |
2.625 |
66.675 |
ABB-TEG31SCC6L.375x.25 |
|
1/2″ x 1/4″ |
2.875 |
73.025 |
ABB-TEG31SCC6L.5x.25 |
|
1/2″ x 3/8″ |
2.875 |
73.025 |
ABB-TEG31SCC6L.5x.375 |
|
3/4″ x 3/8″ |
3.000 |
76.200 |
ABB-TEG31SCC6L.75x.375 |
|
3/4″ x 1/2″ |
3.125 |
79.375 |
ABB-TEG31SCC6L.75x.5 |
|
1″ x 1/2″ |
3.500 |
88.900 |
ABB-TEG31SCC6L1.0x.5 |
|
1″ x 3/4″ |
3.125 |
79.375 |
ABB-TEG31SCC6L1.0x.75 |
|
1-1/2″ x 3/4″ |
4.000 |
101.600 |
ABB-TEG31SCC6L1.5x.75 |
|
1-1/2″ x 1″ |
3.500 |
88.900 |
ABB-TEG31SCC6L1.5×1.0 |
|
2″ x 1″ |
4.375 |
111.125 |
ABB-TEG31SCC6L2.0x1.0 |
|
2″ x 1-1/2″ |
3.500 |
88.900 |
ABB-TEG31SCC6L2.0x1.5 |
|
2-1/2″ x 1-1/2″ |
4.375 |
111.125 |
ABB-TEG31SCC6L2.5×1.5 |
|
2-1/2″ x 2″ |
3.500 |
88.900 |
ABB-TEG31SCC6L2.5×2.0 |
|
3″ x 1-1/2″ |
5.250 |
133.350 |
ABB-TEG31SCC6L3.0x1.5 |
|
3″ x 2″ |
4.375 |
111.125 |
ABB-TEG31SCC6L3.0x2.0 |
|
3″ x 2-1/2″ |
3.625 |
92.075 |
ABB-TEG31SCC6L3.0x2.5 |
|
4″ x 2″ |
6.250 |
158.750 |
ABB-TEG31SCC6L4.0x2.0 |
|
4″ x 2-1/2″ |
5.375 |
136.525 |
ABB-TEG31SCC6L4.0x2.5 |
|
4″ x 3″ |
5.000 |
127.000 |
ABB-TEG31SCC6L4.0x3.0 |
|
6″ x 3″ |
8.500 |
215.900 |
ABB-TEG31SCC6L6.0x3.0 |
|
6″ x 4″ |
7.000 |
177.800 |
ABB-TEG31SCC6L6.0x4.0 |
