Specification
- Product:
– Stainless Steel fittings comply with ASME BPE standards. - Sizes:
– Stainless Steel fittings are available in sizes .” – 6” O.D. tube size.
Materials
Fittings are fabricated in AISI 316L Stainless Steel with sulfur content of 0.005-0.017% achieving superior repeatability for automatic orbital welding process
Surface Finish
Reference: ASME BPE-2014, Part SF, Table SF-2.4-1.
|
Surface Finish Code |
BPE Surface Designation |
Inside Surface |
Outside Surface |
||
|---|---|---|---|---|---|
|
Ra Maximum |
Surface Condition |
Surface Condition |
|||
|
μ-in. |
μm |
||||
|
PL |
SF1 |
20 |
0.51 |
Mechanically Polished* |
Mechanically Polished |
|
PM |
SF4 |
15 |
0.38 |
Mechanically Polished* & Electro-polished |
Mechanically Polished |
*: Or any other finishing method that meets the Ra max.
ASFLOW EP Exceeds the ASME BPE Quality Requirements
- The table below shows how ASFLOW EP exceeds the ASME BPE quality requirements.
- Please refer to ASFLOW homepage “Bio Tubes”
|
Attribute |
ASME BPE Recommendation |
ASFLOW Electro-polishing |
|---|---|---|
|
EP layer Thickness |
15Å < |
20Å < |
|
Cr/Fe ratio |
1 < |
1.5 < |
Ordering Information
|
① |
Brand |
|---|---|
|
ABB |
ASFLOW BIO FITTING |
|
ABC |
ASFLOW BIO GASKET |
|
② |
Item |
|---|---|
|
TEG40 |
GASKET |
|
③ |
Material |
|---|---|
|
6L |
Stainless steel 316L |
|
S4 |
Stainless steel 304 |
|
④ |
Size |
|---|---|
|
04 |
1/4″ |
|
06 |
3/8″ |
|
08 |
1/2″ |
|
12 |
3/4″ |
|
16 |
1″ |
|
24 |
1-1/2″ |
|
32 |
2″ |
|
40 |
2-1/2″ |
|
48 |
3″ |
|
64 |
4″ |
|
96 |
6″ |
|
⑤ |
Surface Finish Code |
|---|---|
|
PL |
SF1 |
|
PM |
SF4 |

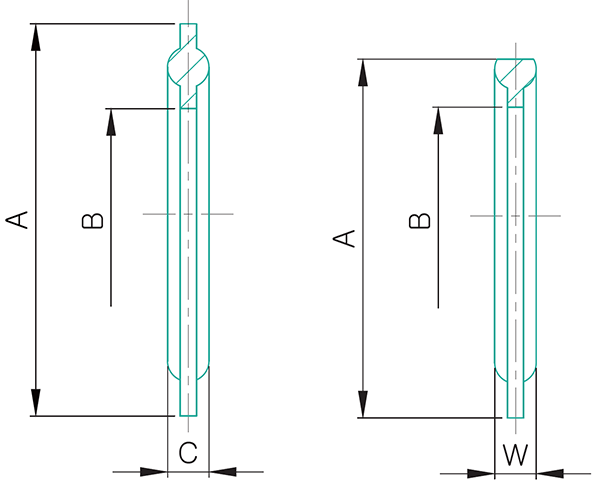

Dimension

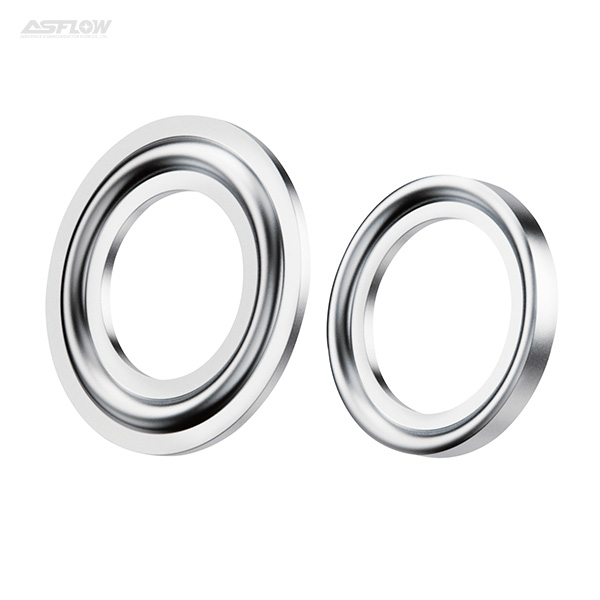

ABC-TEG40 – GASKET
|
Nominal Size in. |
Dimensions |
Ordering Code |
|||||||
|---|---|---|---|---|---|---|---|---|---|
|
A in. |
A ㎜ |
B in. |
B ㎜ |
C in. |
C ㎜ |
W in. |
W ㎜ |
||
|
1/2″ |
1.000 |
25.4 |
0.370 |
9.40 |
– |
– |
0.22 |
5.500 |
ABC-TEG40.5* |
|
3/4″ |
1.000 |
25.4 |
0.618 |
15.70 |
– |
– |
0.22 |
5.500 |
ABC-TEG40.75* |
|
1″ |
1.975 |
50.16 |
0.900 |
22.86 |
0.2 |
5.08 |
– |
– |
ABC-TEG401.0* |
|
1-1/2″ |
1.975 |
50.16 |
1.400 |
35.56 |
0.2 |
5.08 |
– |
– |
ABC-TEG401.5* |
|
2″ |
2.500 |
63.50 |
1.900 |
48.26 |
0.2 |
5.08 |
– |
– |
ABC-TEG402.0* |
|
2-1/2″ |
3.000 |
76.20 |
2.400 |
60.96 |
0.2 |
5.08 |
– |
– |
ABC-TEG402.5* |
|
3″ |
3.575 |
90.80 |
2.900 |
73.66 |
0.2 |
5.08 |
– |
– |
ABC-TEG403.0* |
|
4″ |
4.690 |
119.12 |
3.875 |
98.42 |
0.2 |
5.08 |
– |
– |
ABC-TEG404.0* |
|
6″ |
6.600 |
167.64 |
5.840 |
148.33 |
0.2 |
5.08 |
– |
– |
ABC-TEG406.0* |
* Please specify the gasket material.
Note: Gaskets are type USP Class VI Pharmaceutical Grade
GASKET MATERIALS:
PTFE®
VITON®
Envelope type – TEFLON with EPDM Filler
TEFLON with VITON Filler
SILICON
BUNA
EPDM and TEF-STEEL®
